Air Cooled Low Temperature Brine Chiller AC-15L

Specification

Model Item		AC-15L
Nominal cooling capacity(kw)	50hz	6.03
	60hz	7.24
input power	kw	13.47
power supply	3PH~380V 50HZ/60HZ
refrigerant	type	R507/R404A
	type of control	Expansion valve
compressor	type	hermetic scroll
	power(kw)	11.25
condenser	type	finned copper tube + low noise outer rotor fan
evaporator	type	Shell & tube / Plate heat exchanger (Optional)
	Chilled water flow	2.91(50hz）
		3.5 (60hz）
	inlet and outlet pipe diameter (inch)	2
water pump	power (kw)	1.5
	lift (m)	20
safety protection	compressor overheating protection, over-current protection, high and low pressure,over-temperature protection, flow switch protection,phase sequence or missing phase protection, exhaust overheating protection
weight	kg	750
dimension	mm	1850*990*1780

Note: 1. Nominal cooling capacity is according to:

Inlet/ Outlet chilled fluid temperature:-20℃—-25℃

Inlet/ Outlet cooling air temperature: 30℃—35℃

2. Working range:

The temperature range of chilled fluid is from from -20℃ to -25℃ ;

Temperature difference between inlet and outlet chilled fluid is from 3℃ to 8℃.

It is better to use the chiller while the ambient temperature at or below 35℃.

We reserve the right to modify the above dimensions or parameters without further notice.

Air Cooled Low Temperature Brine Chiller AC-15L

Details

Using the world famous Panasonic compressor, features low noise, low vibration, low energy consumption and high efficiency.

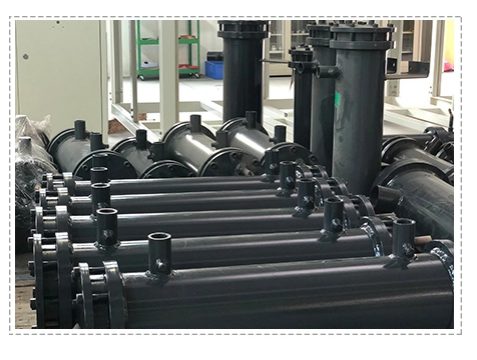

Simple structure, stable quality and high heat transfer performance.

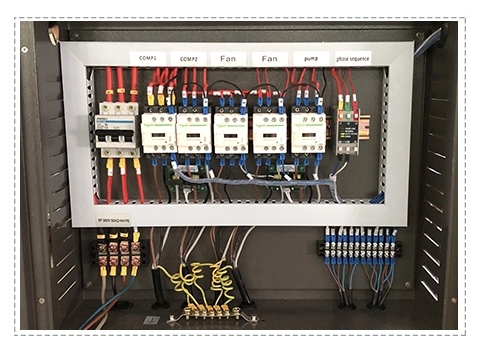

Safety features, such as phase failure protection, flow switch protection, high and low pressure protection and over-heating protection. Higher reliability, low breakdown rate and perfect service system.

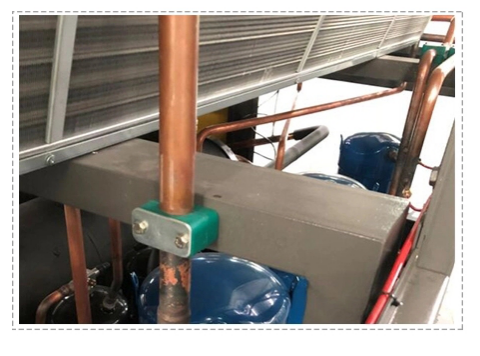

Redesign the route of the pipes and fix the pipes to prevent refrigerant leakage caused by vibration.

All products of AC-L Series

Why choose us?

1.Anges has passed the ISO9001 international quality system certification, also many products have got the CE certification.

2.Anges currently has several independent research patents.

3.We also have many agents in Indonesia, Thailand,and other countries, to fully ensure that every user to enjoy a high quality after-sale service when they using Anges products.

Company Information:

Shenzhen Anges Machinery Co., Ltd is located in the forefront of China's reform and opening up city-Shenzhen. Since it founded in 2004，it always adhere the idea of "Let's freeze the industry”, Anges has developed into the word's leading industrial refrigerate equipment supplier.

FAQ:

Q:What is the working principle of chiller?

Chillers use either a vapor-compression or absorption refrigerant cycle to cool a fluid for heat transfer.

Q:What types of compressors are typically installed on water chillers?

Water chillers use scroll,screw, reciprocating, rotary or centrifugal compressors.

Reciprocating, scroll, or rotary helical compressors are used in smaller machines.

Q:How do chiller compressors work?

Compressors are the driving force in a vapor-compression chiller and act as a pump for the refrigerant. Compressed refrigerant gas is sent from the compressor to a condenser unit that rejects the heat energy from the refrigerant to cooling water or air outside of the system.

Q:What's the difference between a chiller and air conditioning?

Cooled liquid passes through pipes in a building and coils in air handlers or through fan-coil units, which help dehumidify the air. Generally, chillers are air and water cooled. ... Water cooled chillers are usually located internally and water is recycled to a heat sink or external cooling method.
