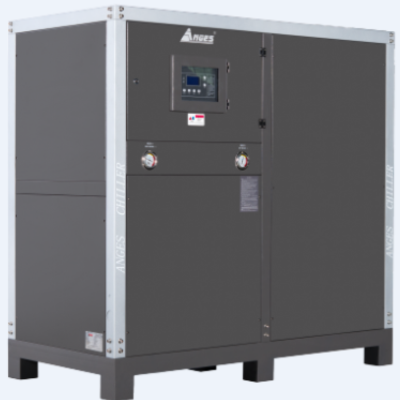

Industrial Water Cooled Scroll Compressor Chiller HBW-5

Industrial Water Cooled Scroll Compressor Chiller HBW-5

Specification

Model Item	HBW-5
nominal cooling capacity	kcal/h	14388
	kw	16.73
input power	kw	4.18
power supply	3PH  380V  50HZ
refrigerant	type	R407C/R410A/R134A
	type of control	capillary
compressor	type	hermetic scroll type
	power(kw)	3.43
condenser	type	shell and tube
	cooling water flow(m3/h)	3.5
	inlet/outlet pipe caliber（inch）	1 1/2
evaporator	type	shell and tube+water tank
	chilled fluid flow(m3/h)	2.9
	volume(L)	60
	inlet and outlet pipe diameter(inch)	1
pump	power(kw)	0.75
	lift(m)	20
safety protection	compressor overheating protection, over-current protection, high and low pressure,over-temperature protection, flow switch, protection,phase sequence or missing phase protection, exhaust overheating protection
weight	kg	150
dimension	mm	1040*500*940

Note: 1.Nominal cooling capacity is according to:

   Inlet chilled fluid temperature: 17℃ Outlet chilled fluid temperature: 12℃

   Inlet cooling water temperature: 30℃ Outlet cooling water temperature: 35℃

     2. Working Range:

   The temperature range of chilled fluid is from 5℃ to 35℃;

   Temperature difference between inlet and outlet chilled fluid is from 3℃ to 8℃.

   The temperature range of cooling water is from 18℃ to 37℃;

 Temperature difference between inlet and outlet cooling water is from 3.5℃ to 10℃.

We reserve the right to modify the above dimensions or parameters without further notice.

Industrial Water Cooled Scroll Compressor Chiller HBW-5

Details

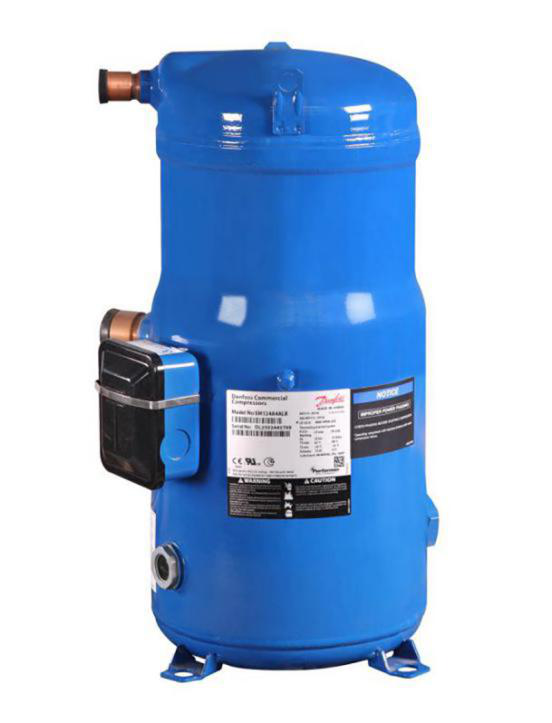

Using the world famous Danfoss hermetic scroll type compressor, features low noise, low vibration, low energy consumption and high efficiency.

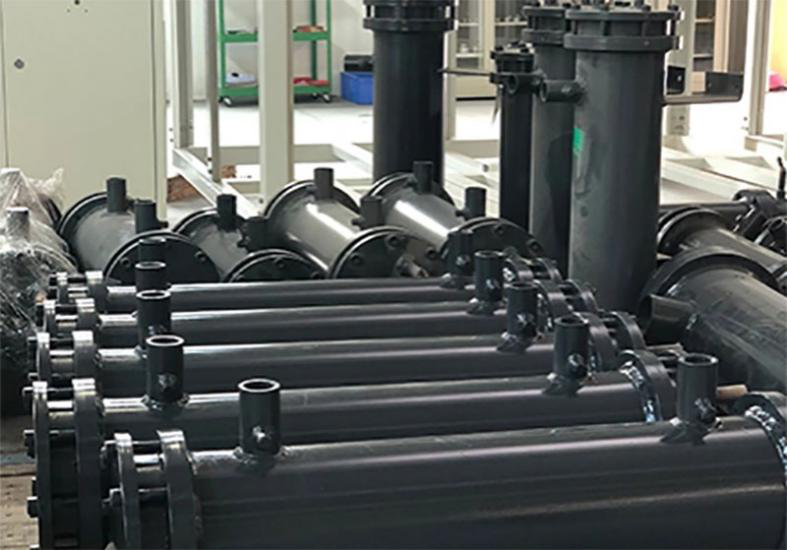

Simple structure, stable quality and high heat transfer performance.

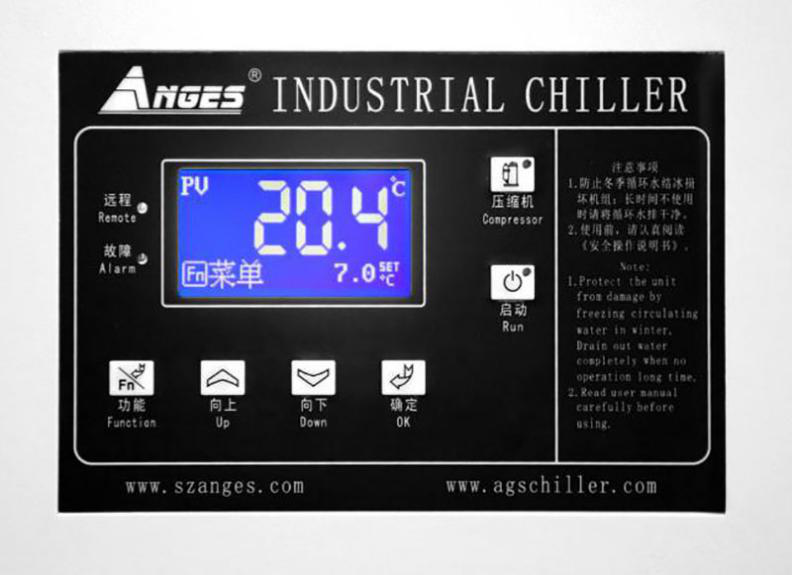

Precise digital display temperature controller is provided to precisely control water temperature with variation of ±1℃.Temperature can be set in the range from 5℃ to 35℃.

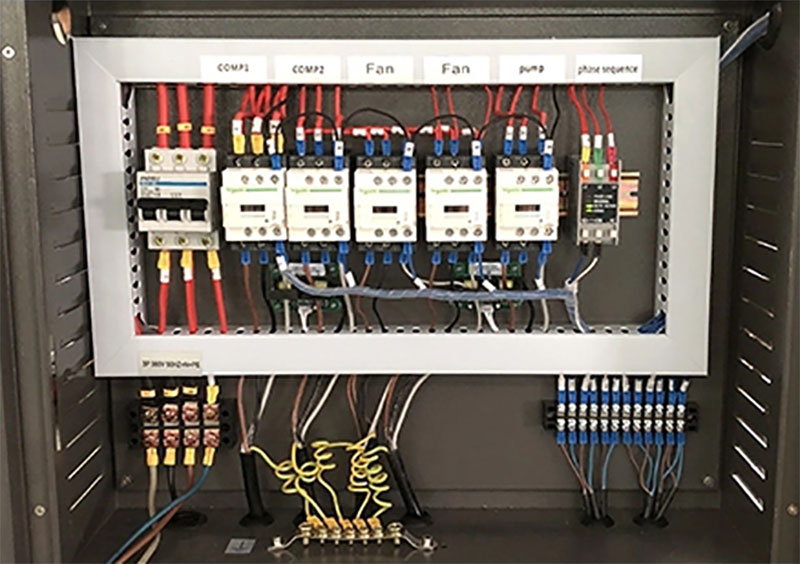

Safety features, such as phase failure protection, flow switch protection, high and low pressure protection and over-heating protection. Higher reliability, low breakdown rate and perfect service system.

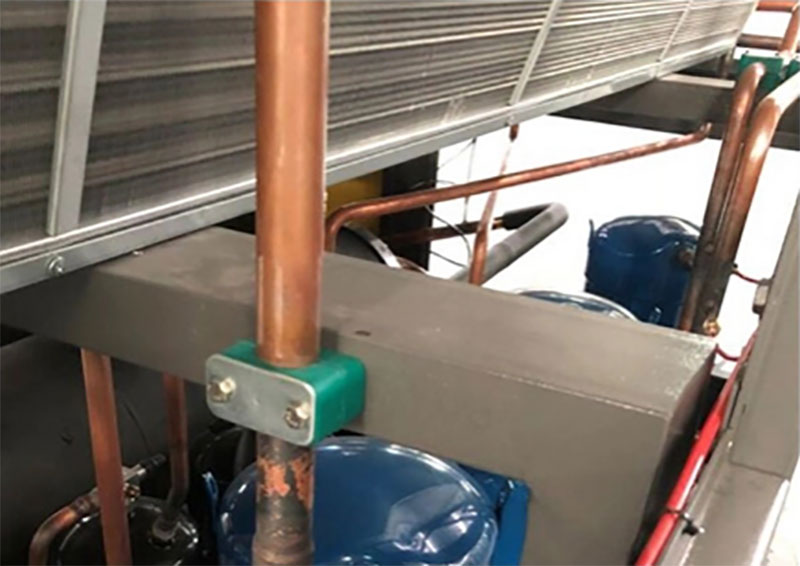

Redesign the route of the pipes and fix the pipes to prevent refrigerant leakage caused by vibration.

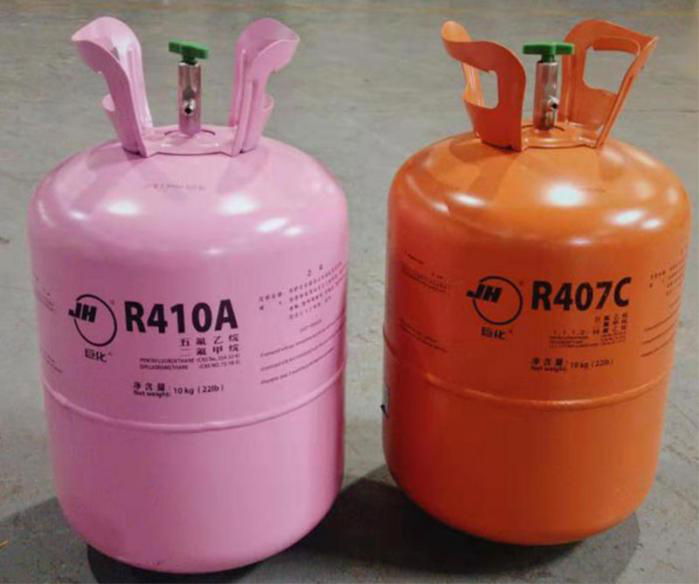

Environment-friendly refrigerant R407C, R410A, R134a, etc, which is no harm to the ozone layer.

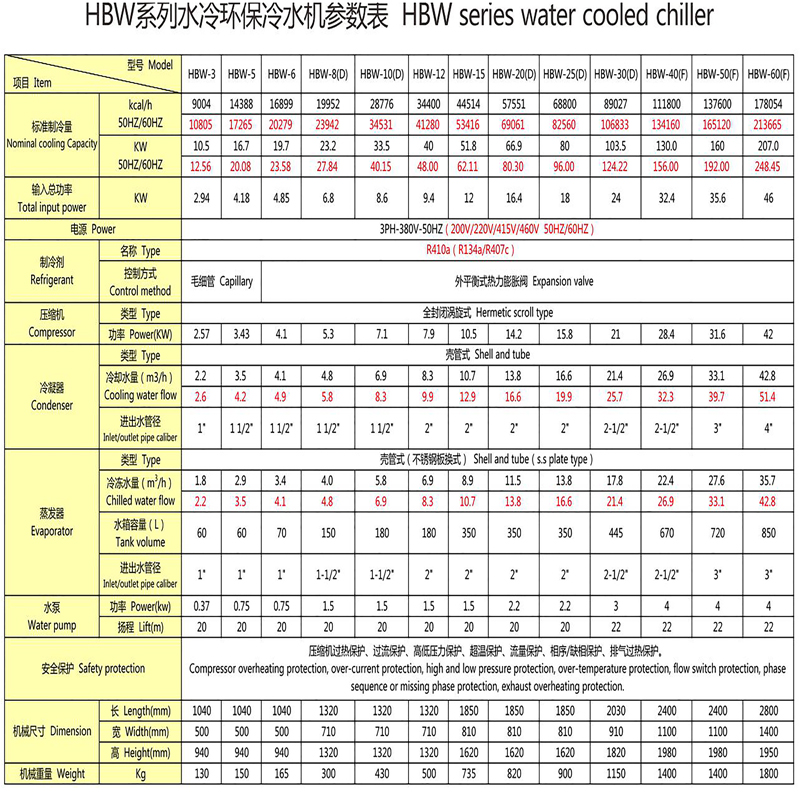

All products of HBW Series

Why choose us?

1.Anges has passed the ISO9001 international quality system certification,  also many products have got the CE certification.

2.Anges currently has several independent research patents.

3.we also have many agents in Indonesia, Thailand,and other countries, to fully ensure that every user to enjoy a high quality after-sale service when they using Anges products.

Company Information:

Shenzhen Anges Machinery Co., Ltd is located in the forefront of China's reform and opening up city-Shenzhen. Since it founded in 2004，it always adhere the idea of "Let's freeze the industry”, Anges has developed into the word's leading industrial refrigerate equipment supplier.

FAQ:

Q:What is a water cooled chiller system?
A chiller is a machine that removes heat from a liquid via a vapor-compression or absorption refrigeration cycle. This liquid can then be circulated through a heat exchanger to cool equipment, or another process stream (such as air or process water).

Q:What is forced draft cooling tower?
Induced draft implies an inlet fan placed on top of the cooling tower and the creation of low pressure. Axial fans are always used for this type of draft. Forced draft means an exhaust fan placed at the base of the cooling tower which then causes over pressure.

Q:What is forced draft cooling tower?
Induced draft implies an inlet fan placed on top of the cooling tower and the creation of low pressure. Axial fans are always used for this type of draft. Forced draft means an exhaust fan placed at the base of the cooling tower which then causes over pressure.

Q:How does a water cooled chiller work?
The process water is the means by which heat transfers from the process to the chiller.
