Temperature Controller Industrial Water Chiller Unit AM-6W

 Temperature Controller Industrial Water Chiller Unit AM-6W

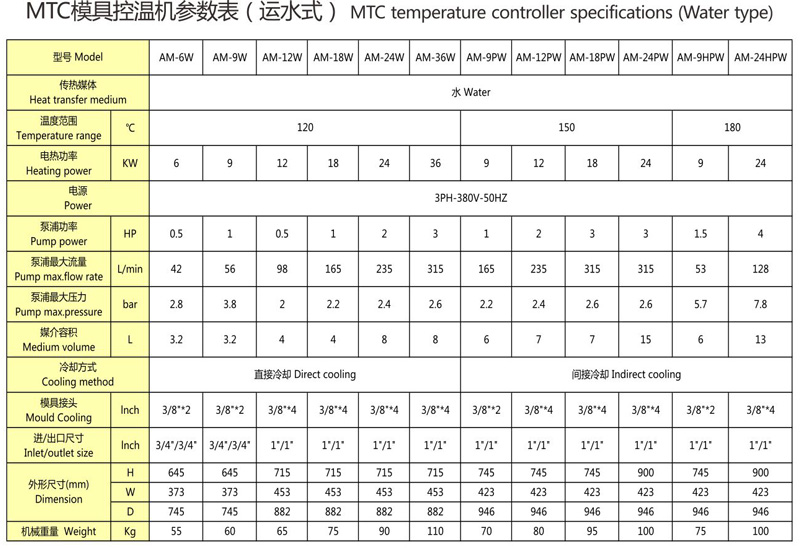

Specification

We reserve the right to modify the above information without further notice.

1:The water pressure should be within 2-4 bar.

2:The pump pressure and flow rate are based on the normal temperature 25℃,flow rate and pressure error are less than ±10%.

3:Mould connectors are optional components,which could be changed to other types based on requirements.

4:High temperature Teflon tube is optional.

5:Heat conduction kerosene is optional.

6:Anges could also customize mold temperature controllers.

Temperature Controller Industrial Water Chiller Unit AM-6W

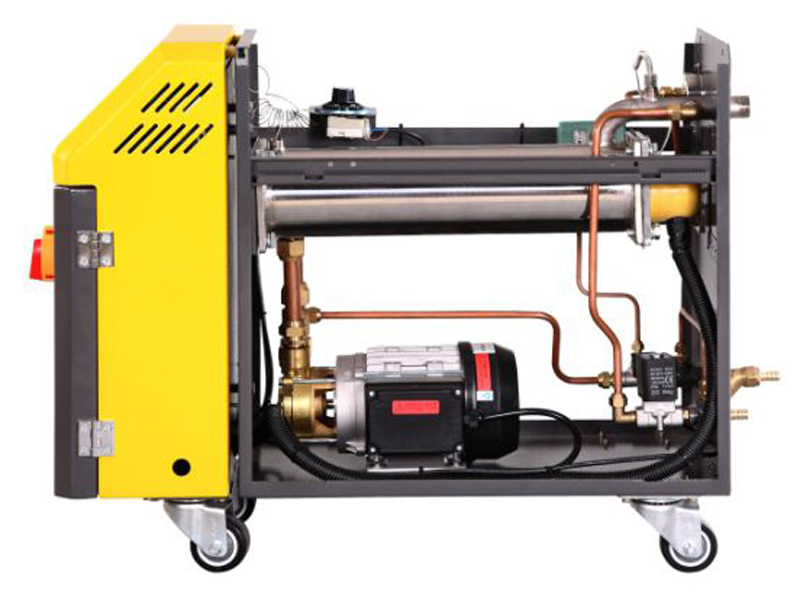

Details

Possess the function of timer switch within one week, English-Chinese switch, and temperature unit switch(℃/℉）。

With humanized operating system, like auto-exhausting gas abd auto-supplying water.

Stainless steel water pump featuring wide working range, low noise, reliable performance.

Equipped with a series of safety protection. like power reversal protection, pumping overload protection, over temperature protection, and water supply orifice protection,etc.

All products of AM Series

Why choose us?

1.Anges has passed the ISO9001 international quality system certification,  also many products have got the CE certification.

2.Anges currently has several independent research patents.

3.we also have many agents in Indonesia, Thailand,and other countries, to fully ensure that every user to enjoy a high quality after-sale service when they using Anges products.

Company Information:

Shenzhen Anges Machinery Co., Ltd is located in the forefront of China's reform and opening up city-Shenzhen. Since it founded in 2004，it always adhere the idea of "Let's freeze the industry”, Anges has developed into the word's leading industrial refrigerate equipment supplier.

Package and Delivery

1. Standard Export Wooden Case;

2. We can make trade terms of FOB、CIF、DAP、DDU and DDP with clients;

3. Usually, it is ok to be deliveried about 35 days for standard chiller;

FAQ:

Q:What is the working principle of chiller?
Chillers use either a vapor-compression or absorption refrigerant cycle to cool a fluid for heat transfer.

Q:What types of compressors are typically installed on water chillers?
Water chillers use scroll,screw, reciprocating, rotary or centrifugal compressors.
Reciprocating, scroll, or rotary helical compressors are used in smaller machines.

Q:How do chiller compressors work?
Compressors are the driving force in a vapor-compression chiller and act as a pump for the refrigerant. Compressed refrigerant gas is sent from the compressor to a condenser unit that rejects the heat energy from the refrigerant to cooling water or air outside of the system.

Q:What's the difference between a chiller and air conditioning?
Cooled liquid passes through pipes in a building and coils in air handlers or through fan-coil units, which help dehumidify the air. Generally, chillers are air and water cooled. ... Water cooled chillers are usually located internally and water is recycled to a heat sink or external cooling method.
