item no.:
AGS-085ASHlead time:
30 daysproduct orgin:
Chinashipping port:
shenzhenpayment:
FOB/CIF/CFRcolor:
greyIndustrial Water Chiller Water Cooling AGS-085ASH

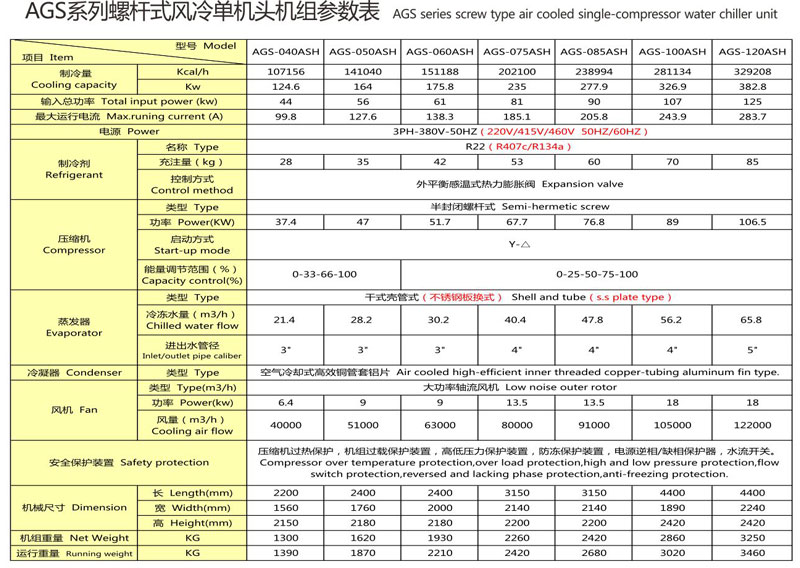

Specification
|
Model Item |
AGS-085ASH |
|
|
nominal cooling capacity |
kcal/h |
238994 |
|
kw |
277.9 |
|
|
input power |
kw |
99 |
|
max.runing current |
A |
197 |
|
power supply |
3PH 380V 50HZ |
|
|
refrigerant |
type |
R22/R407c/R410a/R134a |
|
kg |
60 |
|
|
type of control |
expansion valve |
|
|
compressor |
type |
sewi-hermetic screw |
|
76.8 |
||
|
start-up mode |
Y-△ |
|
|
capacity control(%) |
0-25-50-75-100 |
|
|
evaporator |
type |
Shell and tube |
|
chilled water flow(m3/h) |
47.8 |
|
|
inlet and outlet pipe caliber(inch) |
4 |
|
|
condenser |
type |
air cooled high-efficient inner threaded copper-tubing aluminum fin type |
|
fan |
type(m3/h) |
low noise outer rotor |
|
power(kw) |
13.5 |
|
|
cooling air flow(m3/h) |
91000 |
|
|
safety protection |
compressor overheating protection, over-current protection, high and low pressure,over-temperature protection, flow switch, protection,phase sequence or missing phase protection, exhaust overheating protection |
|
|
weight |
kg |
2420 |
|
dimension |
mm |
3150*2140*2200 |
Note: 1. Nominal cooling capacity is according to:
Inlet chilled fluid temperature: 17℃; Outlet chilled fluid temperature: 12℃
Inlet cooling air temperature: 30℃; Outlet cooling air temperature: 35℃
2.Working Range:
The temperature range of chilled fluid is from 5℃ to 30℃
Temperature difference between inlet and outlet chilled fluid is from 3℃ to 8℃
Temperature difference between inlet and outlet cooling air is from 8℃ to 10℃
We reserve the right to modify the above dimensions or parameters without further notice.
Industrial Water Chiller Water Cooling AGS-085ASH
Details
Industrial water chiller use the world famous brand new type and high-efficient screw-rotor compressor,with efficiency 20%-30% higher than those common ones.It has obtained several patents of Europe and America countries and passed the international quality certification of ISO9001.
Simple structure, stable quality and high heat transfer performance.
The condenser of the air cooled chiller unit is made of aluminum fins and row column tubes to guarantee the high efficiency of heat exchanger.
Precise digital display temperature controller is provided to precisely control water temperature with variation of ±1℃.Temperature can be set in the range from 5℃ to 35℃.
Stainless steel water pump featuring wide working range, low noise, reliable performance.
Safety features, such as phase failure protection, flow switch protection, high and low pressure protection and over-heating protection. Higher reliability, low breakdown rate and perfect service system.
Redesign the route of the pipes and fix the pipes to prevent refrigerant leakage caused by vibration.
Environment-friendly refrigerant R407C, R410A, R134a, etc, which is no harm to the ozone layer.
All products of Air-cooled Screw Chillers Series
Why choose us?
1.Anges has passed the ISO9001 international quality system certification, also many products have got the CE certification.
2.Anges currently has several independent research patents.
3.we also have many agents in Indonesia, Thailand,and other countries, to fully ensure that every user to enjoy a high quality after-sale service when they using Anges products.
Company Information:
Shenzhen Anges Machinery Co., Ltd is located in the forefront of China's reform and opening up city-Shenzhen. Since it founded in 2004，it always adhere the idea of "Let's freeze the industry”, Anges has developed into the word's leading industrial refrigerate equipment supplier.
FAQ:
Q:What is the working principle of chiller?
Chillers use either a vapor-compression or absorption refrigerant cycle to cool a fluid for heat transfer.
Q:What is an industrial chiller?
Industrial chillers are classified as a refrigeration system that cools a process fluid . A chiller will use either a vapor compression or absorption cycle to cool. Chilled water has a variety of applications from space cooling to process uses.
Q:What is the difference between screw chiller and centrifugal chiller?
The screw compressors have an ability to operate at 30 compression ratios that allows much efficient operation than the reciprocating compressor. Typically chillerefficiency is between 0.7 to 0.8 kW per ton, making rotary chillers more efficient than comparably sized reciprocating but less efficient than centrifugal.
Q:How do chiller compressors work?
Compressors are the driving force in a vapor-compression chiller and act as a pump for the refrigerant. Compressed refrigerant gas is sent from the compressor to a condenser unit that rejects the heat energy from the refrigerant to cooling water or air outside of the system.
AGS series screw type air cooled water chillers are widely used in plastic, electroplating, electronics, chemical, pharmaceutical, printing, food processing and other various industrial refrigeration process need to use chilled water areas.Only the highest quality materials used and that made by workers with the most experience and knowledge in the industry.
