Air Cooled Water Chiller Manufacturers AGS-050ASH

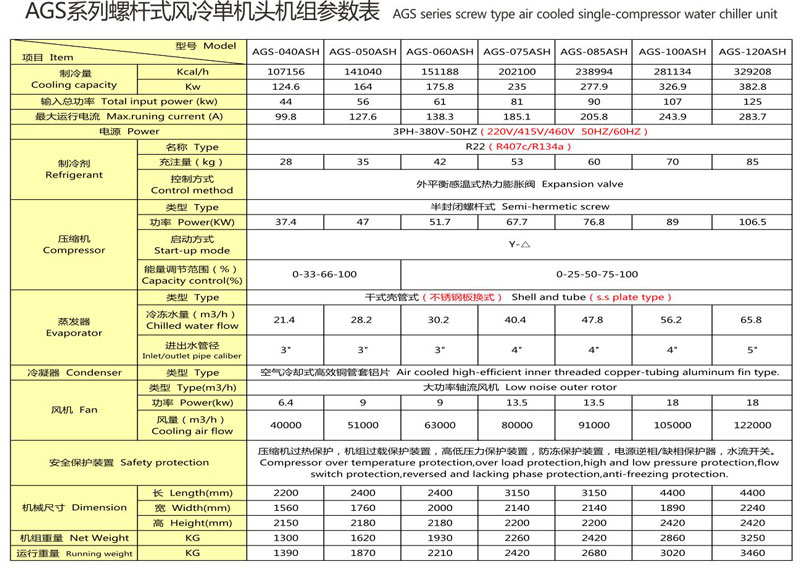

Specification

Model Item	AGS-050ASH
nominal cooling capacity	kcal/h	141040
nominal cooling capacity	kw	164
input power	kw	54
max.runing current	A	121
power supply	3PH 380V 50HZ
refrigerant	type	R22/R407c/R410a/R134a
	kg	35
	type of control	expansion valve
compressor	type	sewi-hermetic screw
	power(kw)	47
	start-up mode	Y-△
	capacity control(%)	0-33-66-100
evaporator	type	Shell and tube
	chilled water flow(m³/h)	28.2
	inlet and outlet pipe caliber(inch)	3
condenser	type	air cooled high-efficient inner threaded copper-tubing aluminum fin type
fan	type(m³/h)	low noise outer rotor
	power(kw)	9
	cooling air flow(m³/h)	51000
safety protection	compressor overheating protection, over-current protection, high and low pressure,over-temperature protection, flow switch, protection,phase sequence or missing phase protection, exhaust overheating protection
weight	kg	1620
dimension	mm	*240017602180*

Note:

1. Nominal cooling capacity is according to:

Inlet chilled fluid temperature: 17℃; Outlet chilled fluid temperature: 12℃

Inlet cooling air temperature: 30℃; Outlet cooling air temperature: 35℃

2.Working Range:

The temperature range of chilled fluid is from 5℃ to 30℃

Temperature difference between inlet and outlet chilled fluid is from 3℃ to 8℃

Temperature difference between inlet and outlet cooling air is from 8℃ to 10℃

We reserve the right to modify the above dimensions or parameters without further notice.

Air Cooled Water Chiller Manufacturers AGS-050ASH

Details

Air Cooled Water Chiller using the world famous brand new type and high-efficient screw-rotor compressor,with efficiency 20%-30% higher than thoes common ones.It has obtained several patents of Europe and America countries and passed the international quality certification of ISO9001.

Air Cooled Water Chiller Manufacturers

Simple structure, stable quality and high heat transfer performance.

The condenser of the air cooled chiller unit is made of aluminum fins and row column tubes to guarantee the high efficiency of heat exchange.

Precise digital display temperature controller is provided to precisely control water temperature with variation of ±1℃.Temperature can be set in the range from 5℃ to 35℃.

Stainless steel water pump featuring wide working range, low noise, reliable performance.

Safety features, such as phase failure protection, flow switch protection, high and low pressure protection and over-heating protection. Higher reliability, low breakdown rate and perfect service system.

Redesign the route of the pipes and fix the pipes to prevent refrigerant leakage caused by vibration.

Environment-friendly refrigerant R407C, R410A, R134a, etc, which is no harm to the ozone layer.

All products of Air-cooled Screw Chillers Series

Why choose us?

1.Anges has passed the ISO9001 international quality system certification, also many products have got the CE certification.

2.Anges currently has several independent research patents.

3.We also have many agents in Indonesia, Thailand,and other countries, to fully ensure that every user to enjoy a high quality after-sale service when they using Anges products.

Company Information:

Shenzhen Anges Machinery Co., Ltd is located in the forefront of China's reform and opening up city-Shenzhen. Since it founded in 2004，it always adhere the idea of "Let's freeze the industry”, Anges has developed into the word's leading industrial refrigerate equipment supplier.

Package and Delivery

1. Standard Export Wooden Case;

2. We can make trade terms of FOB、CIF、DAP、DDU and DDP with clients;

3. Usually, it is ok to be deliveried about 35 days for standard chiller;

FAQ:

Q:What is the difference between air cooled and water cooled chillers?
Air-cooled chiller and water-cooled chiller, the biggest difference between the two is the cooling mode is different（cooling system of the chiller itself.In the structure, their condenser is also different, respectively for shell and tube type and fin type.The water-cooled chiller must rely on the cooling tower, while the air-cooled chiller uses its own fan for cooling.
Air-cooled chiller has higher requirements for the environment,for example, ventilation, humidity, temperature should not be higher than 45°C, air acid and base value, etc.

Q:Do air cooled chillers need cooling towers?
Air-cooled chiller systems typically have a lower first and maintenance cost since they do not require a cooling tower, condenser water pumps, and associated condenser water chemical treatment. Operating costs, however, generally favor water-cooled chillers.

Q:What is chiller cycle?
A chiller is a machine that removes heat from a liquid via a vapor-compression or absorption refrigeration cycle. This liquid can then be circulated through a heat exchanger to cool equipment, or another process stream (such as air or process water).

Q:How does an industrial chiller work?
The process water is the means by which heat transfers from the process to the chiller. This process of heating and cooling the refrigerant and changing it from a gas to a liquid and back again is the refrigeration cycle. The refrigeration cycle starts with a low-pressure liquid/gas mix entering the evaporator.
