item no.:
AGS-120ASHlead time:
30 daysproduct orgin:
Chinashipping port:
shenzhenpayment:
FOB/CIF/CFRcolor:
greyIndustrial Air Cooled Water Chiller AGS-120ASH

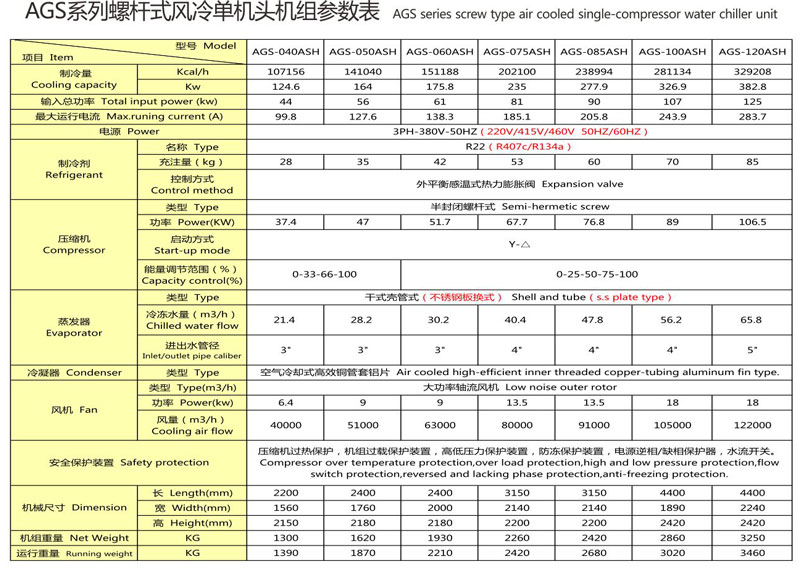

Specification
|
Model Item |
AGS-120ASH |
|
|
nominal cooling capacity |
kcal/h |
329208 |
|
kw |
382.8 | |
|
input power |
kw |
135 |
|
max.runing current |
A |
277 |
|
power supply |
3PH 380V 50HZ |
|
|
refrigerant |
type |
R22/R407c/R410a/R134a |
|
kg |
85 |
|
|
type of control |
expansion valve |
|
|
compressor |
type |
sewi-hermetic screw |
|
106.5 |
||
|
start-up mode |
Y-△ |
|
|
capacity control(%) |
0-33-66-100 |
|
|
evaporator |
type |
Shell and tube |
|
chilled water flow(m3/h) |
65.8 |
|
|
inlet and outlet pipe caliber(inch) |
5 |
|
|
condenser |
type |
air cooled high-efficient inner threaded copper-tubing aluminum fin type |
|
fan |
type(m3/h) |
low noise outer rotor |
|
power(kw) |
18 |
|
|
cooling air flow(m3/h) |
122000 |
|
|
safety protection |
compressor overheating protection, over-current protection, high and low pressure,over-temperature protection, flow switch, protection,phase sequence or missing phase protection, exhaust overheating protection |
|
|
weight |
kg |
3250 |
|
dimension |
mm |
4400*2240*2420 |
Note: 1. Nominal cooling capacity is according to:
Inlet chilled fluid temperature: 17℃; Outlet chilled fluid temperature: 12℃
Inlet cooling air temperature: 30℃; Outlet cooling air temperature: 35℃
2.Working Range:
The temperature range of chilled fluid is from 5℃ to 30℃
Temperature difference between inlet and outlet chilled fluid is from 3℃ to 8℃
Temperature difference between inlet and outlet cooling air is from 8℃ to 10℃
We reserve the right to modify the above dimensions or parameters without further notice.
Industrial Air Cooled Water Chiller AGS-120ASH
Details
Industrial air cooled water chiller use the world famous brand new type and high-efficient screw-rotor compressor,with efficiency 20%-30% higher than those common ones.It has obtained several patents of Europe and America countries and passed the international quality certification of ISO9001.
Simple structure, stable quality and high heat transfer performance.
The condenser of the air cooled chiller unit is made of aluminum fins and row column tubes to guarantee the high efficiency of heat exchanger.
Precise digital display temperature controller is provided to precisely control water temperature with variation of ±1℃.Temperature can be set in the range from 5℃ to 35℃.
Stainless steel water pump featuring wide working range, low noise, reliable performance.
Safety features, such as phase failure protection, flow switch protection, high and low pressure protection and over-heating protection. Higher reliability, low breakdown rate and perfect service system.
Redesign the route of the pipes and fix the pipes to prevent refrigerant leakage caused by vibration.
Environment-friendly refrigerant R407C, R410A, R134a, etc, which is no harm to the ozone layer.
All products of Air-cooled Screw Chillers Series
Why choose us?
1.Anges has passed the ISO9001 international quality system certification, also many products have got the CE certification.
2.Anges currently has several independent research patents.
3.we also have many agents in Indonesia, Thailand,and other countries, to fully ensure that every user to enjoy a high quality after-sale service when they using Anges products.
Company Information:
Shenzhen Anges Machinery Co., Ltd is located in the forefront of China's reform and opening up city-Shenzhen. Since it founded in 2004，it always adhere the idea of "Let's freeze the industry”, Anges has developed into the word's leading industrial refrigerate equipment supplier.
FAQ:
Q:What's the difference between a chiller and air conditioning?
Cooled liquid passes through pipes in a building and coils in air handlers or through fan-coil units, which help dehumidify the air. Generally, chillers are air and water cooled. Water cooled chillers are usually located internally and water is recycled to a heat sink or external cooling method.
Q:What is the function of condenser in chiller?
Water-cooled condensers and chiller barrels are specialized heat exchangers. They exchange heat by removing heat from one fluid and transferring it to another fluid. A water-cooled condenser is a heat exchanger that removes heat from refrigerant vapor and transfers it to the water running through it.
Q:What is the function of compressor in chiller?
The function of a compressor is to increase the pressure, and corresponding saturation temperature (boiling point) of the refrigerant vapor to high enough level so the refrigerant can condense by rejecting its heat through the condenser.
Q:What is the function of evaporator in chiller?
The cycle starts with a cool low pressure mixture of liquid & vapour refrigerant entering the chiller evaporator. Once inside the chiller evaporator it absorbs the heat from the relatively warm water or fluid that the chiller is cooling.
AGS series screw type air cooled water chillers are widely used in plastic, electroplating, electronics, chemical, pharmaceutical, printing, food processing and other various industrial refrigeration process need to use chilled water areas.Only the highest quality materials used and that made by workers with the most experience and knowledge in the industry.
