Cooling Tower

home /

Cooling Tower

/Anges Cooling Tower

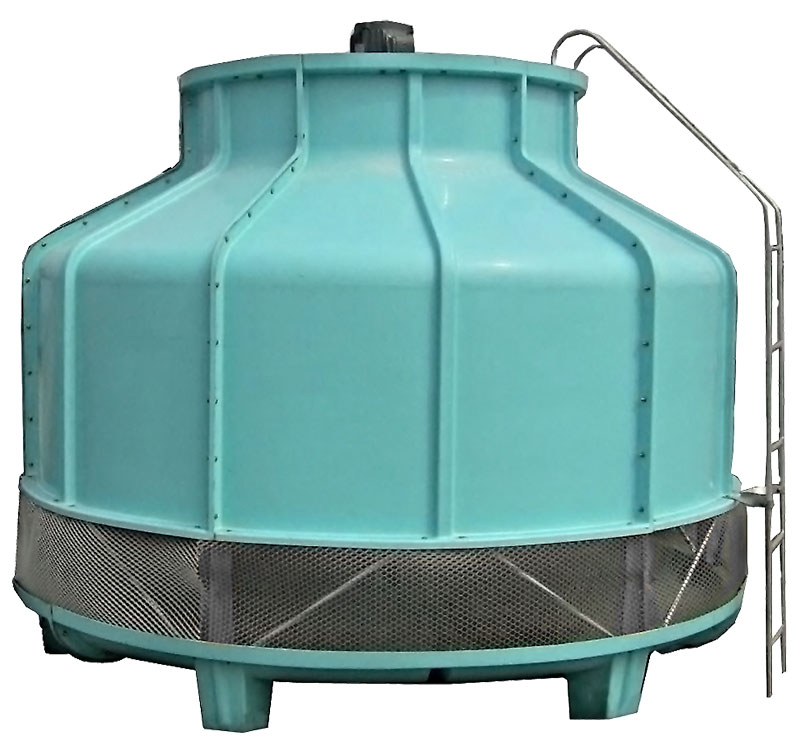

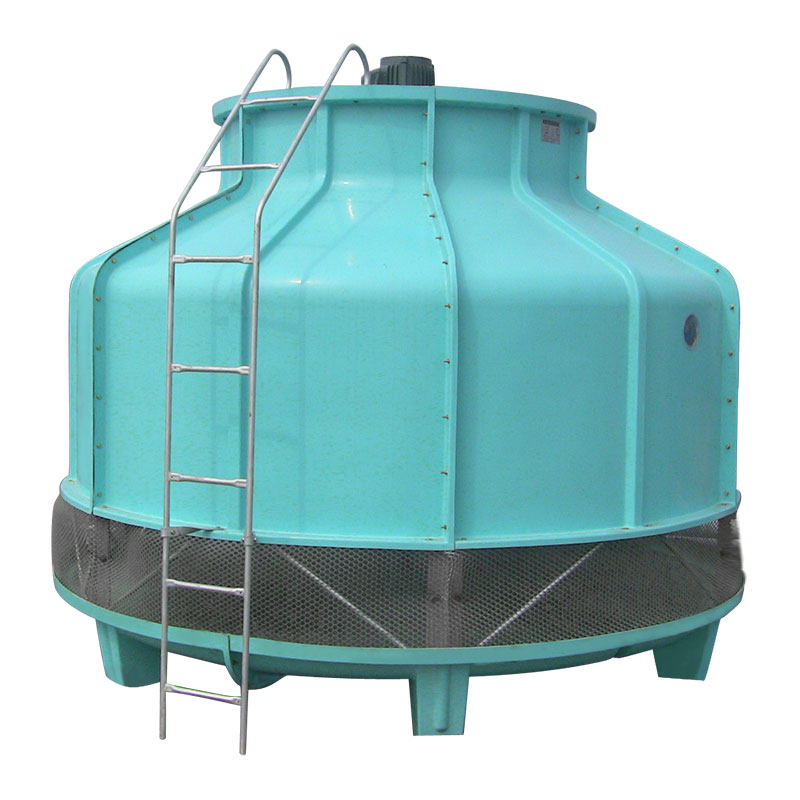

Anges Cooling Tower

Anges cooling tower adopts high quality PVC heat radiation films and the designed shape of films effectively prolongs the contact time between high temperature water and the cooling air, therefore the cooling effect is excellent. The tower chassis, featuring anti-corrosion, strong ability of resistance of vile weather and beautiful appearance made of high strength glassfiber, and its rotation part and connection area is made of high quality raw materials, that greatly improves the service life and connection strength.
  • item no.:

    ST-10
  • lead time:

    30 days
  • product orgin:

    China
  • shipping port:

    shenzhen
  • payment:

    FOB/CIF/CFR
  • color:

    green
  • attribute
  • photos

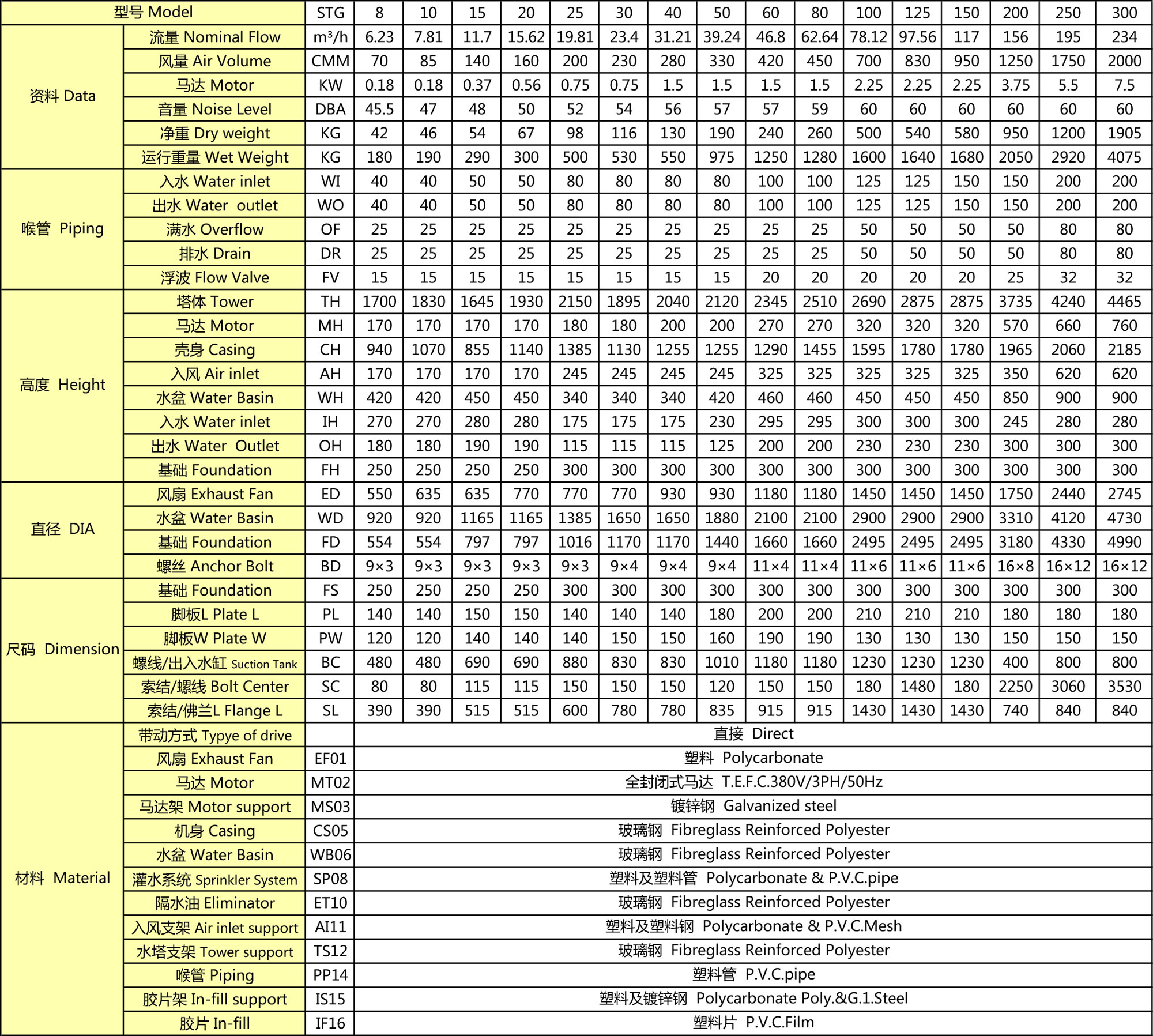

REMARKS:


1.Parameter according to:


inlet temp-T1=37℃,


outlet temp-T2=32℃,


wet bulb temp-WBT=27℃,


temperature difference of cooling water-△Ts=5℃,


atmospher ic pressure-P=99400Pa.


2.The above parameters are also suitable for standard ST series, LKT/SS series and high temperature type.


3.We reserve the right to modify the above dimensions and parameters without further notice.

Anges Cooling Tower ST series ST-10


Details


Anges Cooling Tower


Anges Cooling Tower

Why choose us?

1.Anges has passed the ISO9001 international quality system certification,  also many products have got the CE certification.

2.Anges currently has several independent research patents.

3.we also have many agents in Indonesia, Thailand,and other countries, to fully ensure that every user to enjoy a high quality after-sale service when they using Anges products.


Company Information:



Shenzhen Anges Machinery Co., Ltd is located in the forefront of China's reform and opening up city-Shenzhen. Since it founded in 2004,it always adhere the idea of "Let's freeze the industry”, Anges has developed into the word's leading industrial refrigerate equipment supplier.


FAQ:

Q:What is a water cooled chiller system?
A chiller is a machine that removes heat from a liquid via a vapor-compression or absorption refrigeration cycle. This liquid can then be circulated through a heat exchanger to cool equipment, or another process stream (such as air or process water).


Q:What is forced draft cooling tower?
Induced draft implies an inlet fan placed on top of the cooling tower and the creation of low pressure. Axial fans are always used for this type of draft. Forced draft means an exhaust fan placed at the base of the cooling tower which then causes over pressure.


Q:What is forced draft cooling tower?
Induced draft implies an inlet fan placed on top of the cooling tower and the creation of low pressure. Axial fans are always used for this type of draft. Forced draft means an exhaust fan placed at the base of the cooling tower which then causes over pressure.


Q:How does a water cooled chiller work?
The process water is the means by which heat transfers from the process to the chiller.
