Specification

Model Item	AWK-8（D)
nominal cooling capacity	kcal/h	22446
	kw	26.1
input power	kw	6.7
power supply	3PH  380V  50HZ
refrigerant	type	R22/R407C/R410A/R134A
	type of control	expansion valve
compressor	type	hermetic scroll type
	power(kw)	5.2
condenser	type	shell and tube
	cooling water flow(m3/h)	5.4
	inlet/outlet pipe caliber（inch）	1 1/2
evaporator	type	shell and tube+water tank
	chilled fluid flow(m3/h)	4.5
	volume(L)	75
	inlet and outlet pipe diameter(inch)	1-1/2
pump	power(kw)	1.5
	lift(m)	22
safety protection	compressor overheating protection, over-current protection, high and low pressure,over-temperature protection, flow switch, protection,phase sequence or missing phase protection, exhaust overheating protection
weight	kg	350
dimension	mm	1350*760*1320

Note: 1.Nominal cooling capacity is according to:

   Inlet chilled fluid temperature: 17℃ Outlet chilled fluid temperature: 12℃

   Inlet cooling water temperature: 30℃ Outlet cooling water temperature: 35℃

     2. Working Range:

   The temperature range of chilled fluid is from 5℃ to 35℃;

   Temperature difference between inlet and outlet chilled fluid is from 3℃ to 8℃.

   The temperature range of cooling water is from 18℃ to 37℃;

 Temperature difference between inlet and outlet cooling water is from 3.5℃ to 10℃.

We reserve the right to modify the above dimensions or parameters without further notice.

China Water Cooled Chiller Catalogue AWK-8(D)

Details

Water Cooled Chiller use the world famous Danfoss hermetic scroll type compressor, features low noise, low vibration, low energy consumption and high efficiency.

Simple structure, stable quality and high heat transfer performance.

Precise digital display temperature controller is provided to precisely control water temperature with variation of ±1℃.Temperature can be set in the range from 5℃ to 35℃.

Safety features, such as phase failure protection, flow switch protection, high and low pressure protection and over-heating protection. Higher reliability, low breakdown rate and perfect service system.

Redesign the route of the pipes and fix the pipes to prevent refrigerant leakage caused by vibration.

Environment-friendly refrigerant R407C, R410A, R134a, etc, which is no harm to the ozone layer.

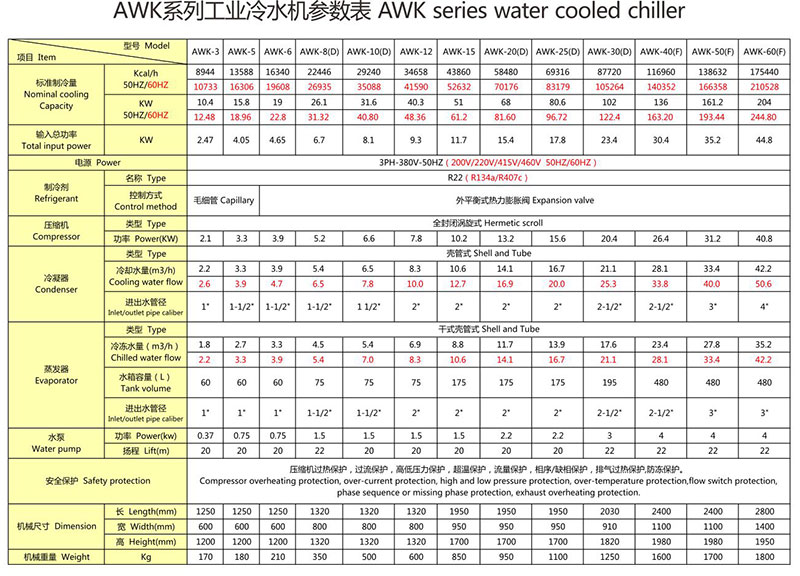

All products of AWK Series

Why choose us?

1.Anges has passed the ISO9001 international quality system certification,  also many products have got the CE certification.

2.Anges currently has several independent research patents.

3.We also have many agents in Indonesia, Thailand,and other countries, to fully ensure that every user to enjoy a high quality after-sale service when they using Anges products.

Company Information:

Shenzhen Anges Machinery Co., Ltd is located in the forefront of China's reform and opening up city-Shenzhen. Since it founded in 2004，it always adhere the idea of "Let's freeze the industry”, Anges has developed into the word's leading industrial refrigerate equipment supplier.

FAQ:

Q:What are the components of a cooling tower?
Cooling tower packing. Cooling tower packing is one of the most important parts of a cooling tower. Drift separators. Drift separators have the purpose of preventing droplets or smaller aerosols from being taken by the air flow from the cooling tower.Gear and fans.Water distribution system. Air intake louvers.

Q: What is the difference between air cooled and water cooled chillers?

A: The difference is in how the condenser water loop rejects heat into the atmosphere.Air cooled chiller uses a tube and fin type air heat exchanger to reject the condenser water heat directly into the atmosphere via sensible cooling.

Q:Do cooling towers pollute?
Water that is applied in cooling towers, even when this concerns tap water, often contains salts (such as chlorine, sulphates and carbonates), dissolved gases (such as oxygen and carbon dioxide) and metal ions (such as iron and manganese ions). The presence of these pollutants can cause a series of problems.

Q: How often should chiller tubes be cleaned?

A: Most chiller manufacturers recommend cleaning condenser tubes annually, since they typically are part of an open system, and they recommend cleaning evaporatortubes once every three years for closed systems.
