Portable Water Cooled Water Chiller AWK-5

Portable Water Cooled Water Chiller  AWK-5

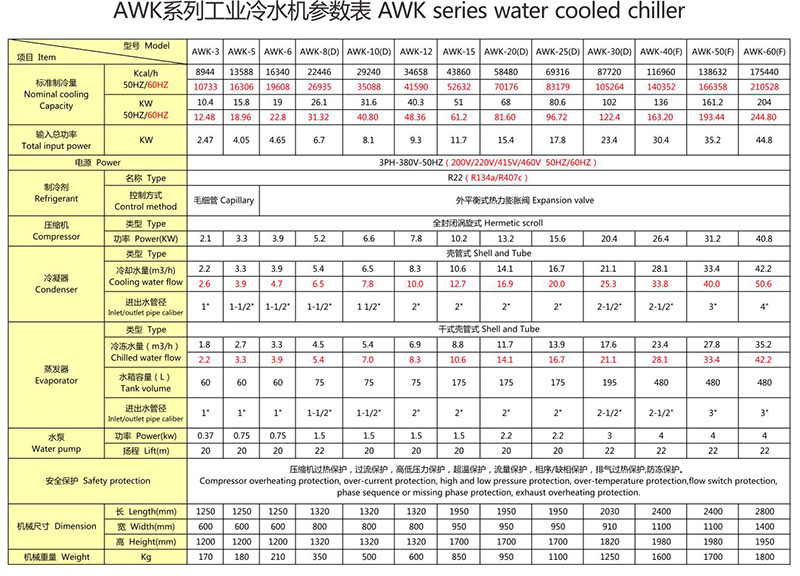

Specification

Note:

1.Nominal cooling capacity is according to:

Inlet chilled fluid temperature: 17℃ Outlet chilled fluid temperature: 12℃

Inlet cooling water temperature: 30℃ Outlet cooling water temperature: 35℃

2. Working Range:

The temperature range of chilled fluid is from 5℃ to 35℃;

Temperature difference between inlet and outlet chilled fluid is from 3℃ to 8℃.

The temperature range of cooling water is from 18℃ to 37℃;

Temperature difference between inlet and outlet cooling water is from 3.5℃ to 10℃.

We reserve the right to modify the above dimensions or parameters without further notice.

Portable Water Cooled Water Chiller AWK-5

Details

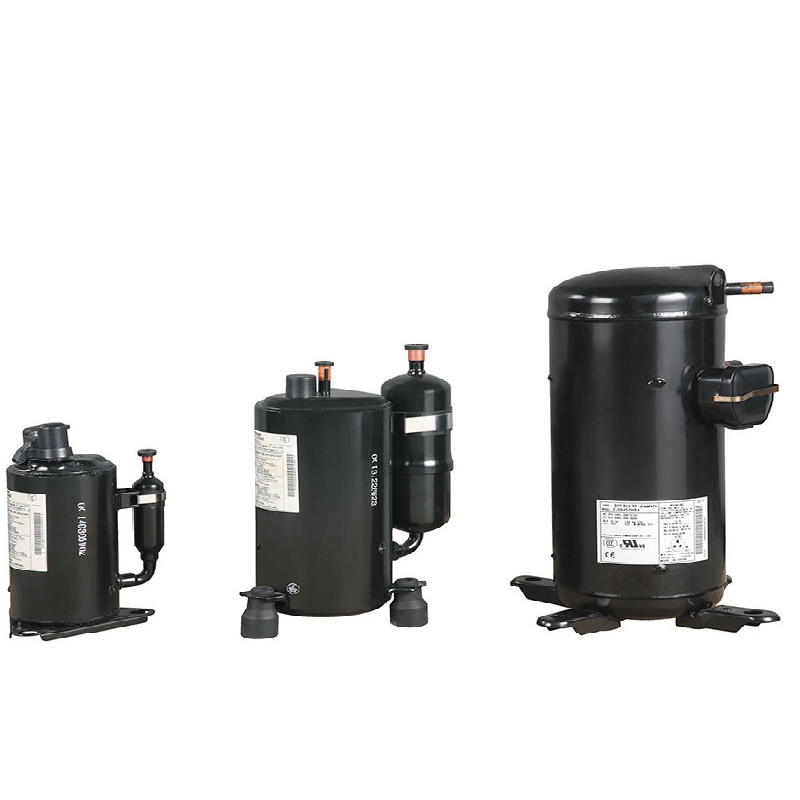

Water cooled scroll chiller, Using the world famous Panasonic hermetic scroll type compressor, features low noise, low vibration, low energy consumption and high efficiency.

Simple structure, stable quality and high heat transfer performance.

Precise digital display temperature controller is provided to precisely control water temperature with variation of ±1℃.Temperature can be set in the range from 5℃ to 35℃.

Safety features, such as phase failure protection, flow switch protection, high and low pressure protection and over-heating protection. Higher reliability, low breakdown rate and perfect service system.

Redesign the route of the pipes and fix the pipes to prevent refrigerant leakage caused by vibration.

Environment-friendly refrigerant R407C, R410A, R134a, etc, which is no harm to the ozone layer.

All products of AWK Series

Why choose us?

1.Anges has passed the ISO9001 international quality system certification,  also many products have got the CE certification.

2.Anges currently has several independent research patents.

3.We also have many agents in Indonesia, Thailand,and other countries, to fully ensure that every user to enjoy a high quality after-sale service when they using Anges products.

Company Information:

Shenzhen Anges Machinery Co., Ltd is located in the forefront of China's reform and opening up city-Shenzhen. Since it founded in 2004，it always adhere the idea of "Let's freeze the industry”, Anges has developed into the word's leading industrial refrigerate equipment supplier.

Package and Delivery

1. Standard Export Wooden Case;

2. We can make trade terms of FOB、CIF、DAP、DDU and DDP with clients;

3. Usually, it is ok to be deliveried about 35 days for standard chiller;

FAQ:

Q:What is the difference between a cooling tower and chiller?
The condenser heat exchanger is the major component that rejects heat from thechillers to air. Cooling towers are generally used to provide cooled water to electric power generation and mechanical processes. ... A cooling tower uses pumps to circulate the water supply.

Q:What is forced draft cooling tower?
Induced draft implies an inlet fan placed on top of the cooling tower and the creation of low pressure. Axial fans are always used for this type of draft. Forced draft means an exhaust fan placed at the base of the cooling tower which then causes over pressure.

Q:What is the difference between chilled water and cooling water?
What is the difference between the chilled water and the cooling water? ...Cooling water is water used as a heat-transfer medium to carry heat away from one or more parts of a system. Sometimes chilled water is used as cooling water, but it's generally cheaper to use water starting at ambient temperature.

Q:How does a water cooled chiller work?
The process water is the means by which heat transfers from the process to the chiller.
