Small Industrial Water Chiller Series AWK-6

Small Industrial Water Chiller Units AWK-6

Specification

Model Item	AWK-6
nominal cooling capacity	kcal/h	16340
	kw	19
input power	kw	4.65
power supply	3PH  380V  50HZ
refrigerant	type	R22/R407C/R410A/R134A
	type of control	capillary
compressor	type	hermetic scroll type
	power(kw)	3.9
condenser	type	shell and tube
	cooling water flow(m3/h)	3.9
	inlet/outlet pipe caliber（inch）	1 1/2
evaporator	type	shell and tube+water tank
	chilled fluid flow(m3/h)	3.3
	volume(L)	60
	inlet and outlet pipe diameter(inch)	1
pump	power(kw)	0.75
	lift(m)	20
safety protection	compressor overheating protection, over-current protection, high and low pressure,over-temperature protection, flow switch, protection,phase sequence or missing phase protection, exhaust overheating protection
weight	kg	210
dimension	mm	1350*600*940

Note: 1.Nominal cooling capacity is according to:

   Inlet chilled fluid temperature: 17℃ Outlet chilled fluid temperature: 12℃

   Inlet cooling water temperature: 30℃ Outlet cooling water temperature: 35℃

     2. Working Range:

   The temperature range of chilled fluid is from 5℃ to 35℃;

   Temperature difference between inlet and outlet chilled fluid is from 3℃ to 8℃.

   The temperature range of cooling water is from 18℃ to 37℃;

 Temperature difference between inlet and outlet cooling water is from 3.5℃ to 10℃.

We reserve the right to modify the above dimensions or parameters without further notice.

Small Industrial Water Chiller Units AWK-6

Details

Small industrial water chiller units use the world famous Danfoss hermetic scroll type compressor, features low noise, low vibration, low energy consumption and high efficiency.

Simple structure, stable quality and high heat transfer performance.

Precise digital display temperature controller is provided to precisely control water temperature with variation of ±1℃.Temperature can be set in the range from 5℃ to 35℃.

Safety features, such as phase failure protection, flow switch protection, high and low pressure protection and over-heating protection. Higher reliability, low breakdown rate and perfect service system.

Redesign the route of the pipes and fix the pipes to prevent refrigerant leakage caused by vibration.

Environment-friendly refrigerant R407C, R410A, R134a, etc, which is no harm to the ozone layer.

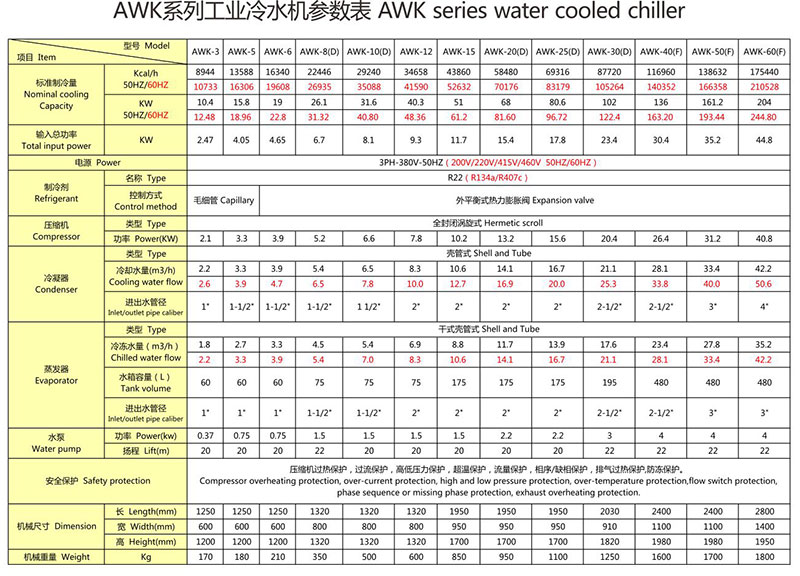

All products of AWK Series

Why choose us?

1.Anges has passed the ISO9001 international quality system certification,  also many products have got the CE certification.

2.Anges currently has several independent research patents.

3.we also have many agents in Indonesia, Thailand,and other countries, to fully ensure that every user to enjoy a high quality after-sale service when they using Anges products.

Company Information:

Shenzhen Anges Machinery Co., Ltd is located in the forefront of China's reform and opening up city-Shenzhen. Since it founded in 2004，it always adhere the idea of "Let's freeze the industry”, Anges has developed into the word's leading industrial refrigerate equipment supplier.

FAQ:

Q:What is the purpose of a cooling tower in a water cooled system?
What is the purpose of the cooling tower in a water-cooled system? The cooling tower is the unit in a water-cooled system that rejects the heat into the atmoshere. Spreading the water out as it passes though the cooling tower helps the water ---- faster.

Q:What is forced draft cooling tower?
Induced draft implies an inlet fan placed on top of the cooling tower and the creation of low pressure. Axial fans are always used for this type of draft. Forced draft means an exhaust fan placed at the base of the cooling tower which then causes over pressure.

Q:What is a water box on a chiller?
Water boxes are mounted to the evaporators and also the condensers of water cooled chillers. The purpose of the water box is to direct flow as well as as to segregate the entrance and exit.

Q:How does a water cooled chiller work?
The process water is the means by which heat transfers from the process to the chiller.
