Industrial Water Cooled Water Chiller System AWK-15

Industrial Water Cooled Water Chiller System  AWK-15

Specification

Model Item	AWK-15
nominal cooling capacity	kcal/h	43860
	kw	51
input power	kw	11.7
power supply	3PH  380V  50HZ
refrigerant	type	R22/R407C/R410A/R134A
	type of control	expansion valve
compressor	type	hermetic scroll type
	power(kw)	10.2
condenser	type	shell and tube
	cooling water flow(m3/h)	10.6
	inlet/outlet pipe caliber（inch）	2
evaporator	type	shell and tube+water tank
	chilled fluid flow(m3/h)	8.8
	volume(L)	175
	inlet and outlet pipe diameter(inch)	2
pump	power(kw)	1.5
	lift(m)	20
safety protection	compressor overheating protection, over-current protection, high and low pressure,over-temperature protection, flow switch, protection,phase sequence or missing phase protection, exhaust overheating protection
weight	kg	850
dimension	mm	1850*810*1620

Note: 1.Nominal cooling capacity is according to:

   Inlet chilled fluid temperature: 17℃ Outlet chilled fluid temperature: 12℃

   Inlet cooling water temperature: 30℃ Outlet cooling water temperature: 35℃

     2. Working Range:

   The temperature range of chilled fluid is from 5℃ to 35℃;

   Temperature difference between inlet and outlet chilled fluid is from 3℃ to 8℃.

   The temperature range of cooling water is from 18℃ to 37℃;

 Temperature difference between inlet and outlet cooling water is from 3.5℃ to 10℃.

We reserve the right to modify the above dimensions or parameters without further notice.

Industrial Water Cooled Water Chiller System  AWK-15

Details

Industrial water cooled water chiller system use the world famous Danfoss hermetic scroll type compressor, features low noise, low vibration, low energy consumption and high efficiency.

Simple structure, stable quality and high heat transfer performance.

Precise digital display temperature controller is provided to precisely control water temperature with variation of ±1℃.Temperature can be set in the range from 5℃ to 35℃.

Safety features, such as phase failure protection, flow switch protection, high and low pressure protection and over-heating protection. Higher reliability, low breakdown rate and perfect service system.

Redesign the route of the pipes and fix the pipes to prevent refrigerant leakage caused by vibration.

Environment-friendly refrigerant R407C, R410A, R134a, etc, which is no harm to the ozone layer.

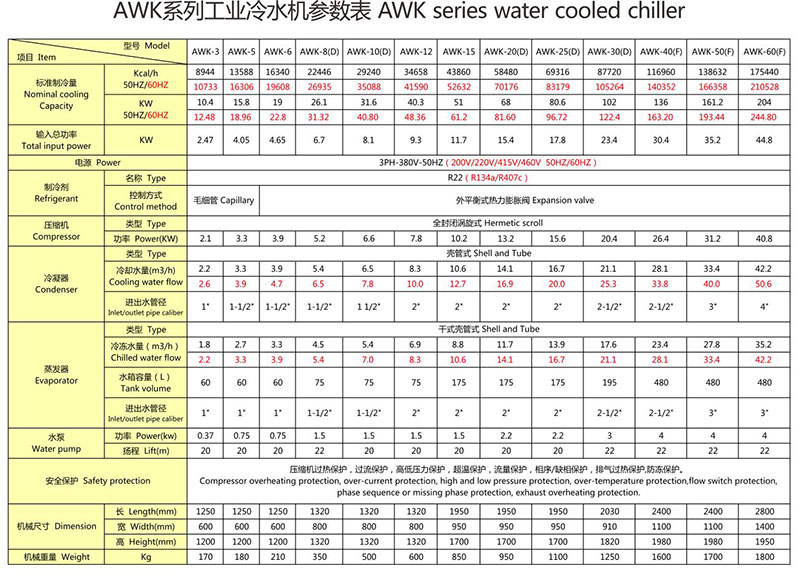

All products of AWK Series

Why choose us?

1.Anges has passed the ISO9001 international quality system certification,  also many products have got the CE certification.

2.Anges currently has several independent research patents.

3.We also have many agents in Indonesia, Thailand,and other countries, to fully ensure that every user to enjoy a high quality after-sale service when they using Anges products.

Company Information:

Shenzhen Anges Machinery Co., Ltd is located in the forefront of China's reform and opening up city-Shenzhen. Since it founded in 2004，it always adhere the idea of "Let's freeze the industry”, Anges has developed into the word's leading industrial refrigerate equipment supplier.

FAQ:

Q:Why are water cooled chillers more efficient than air cooled chillers?
Water-cooled chillers are more efficient because its condense depending on the ambient temperature bulb temperature, which is lower than the ambient dry bulb temperature. The lower a chiller condenses, the more efficient it is.

Q:How do condensers and evaporators work?
The evaporator works the opposite of the condenser, here refrigerant liquid is converted to gas, absorbing heat from the air in the compartment. When the liquid refrigerant reaches the evaporator its pressure has been reduced, dissipating its heat content and making it much cooler than the fan air flowing around it.

Q:Why do we use shell and tube in heat exchanger?

 Shell and tube heat exchanger is used in various industrial process applications because they can perform tasks such as: Removal of process heat and feed water preheating. Cooling of hydraulic and lube oil.

Q：What is the function of evaporator in chiller?
The cycle starts with a cool low pressure mixture of liquid & vapour refrigerant entering the chiller evaporator. Once inside the chiller evaporator it absorbs the heat from the relatively warm water or fluid that the chiller is cooling.
