item no.:
AC-10Hlead time:
30 daysproduct orgin:
Chinashipping port:
shenzhenpayment:
FOB/CIF/CFRcolor:
yellow+greyHeat-cold Types of Water Chillers System AC-10H
Specification
Model Item
AC-10H
nominal cooling capacity
kcal/h
25886
kw
30.1
input power
kw
22.52
power supply
3PH 380V 50HZ
refrigerant
type
R22(R134A/R407C/R410A)
type of control
capillary
compressor
type
hermetic scroll type
power(kw)
8.1
condenser
type
finned copper tube+low noise outer fan
power(kw)
0.92
cooling air flow(m3/h)
10000
evaporator
type
shell and tube+water tank
chilled fluid flow(m3/h)
5.91
volume(L)
200
inlet and outlet pipe diameter(inch)
1-1/2
pump
power(kw)
1.5
lift(m)
20
heating device
type
heating pipe
power(kw)
12
safety protection
compressor overheating protection, over-current protection, high and low pressure,over-temperature protection, flow switch, protection,phase sequence or missing phase protection, exhaust overheating protection
weight
kg
450
dimension
mm
1680*780*1630
Note: 1.Nominal cooling capacity is according to:
Inlet chilled fluid temperature: 17℃
Outlet chilled fluid temperature: 12℃
Inlet cooling air temperature: 30℃
Outlet cooling air temperature: 35℃
2. Working Range:
The temperature range of chilled fluid is from 5℃ to 35℃;
Temperature difference between inlet and outlet chilled fluid is from 3℃ to 8℃.
It is better to run the chiller while the ambient temperature at or below 35℃.
We reserve the right to modify the above dimensions or parameters without further notice.
Heat-cold Types of Water Chillers System AC-10H
Details

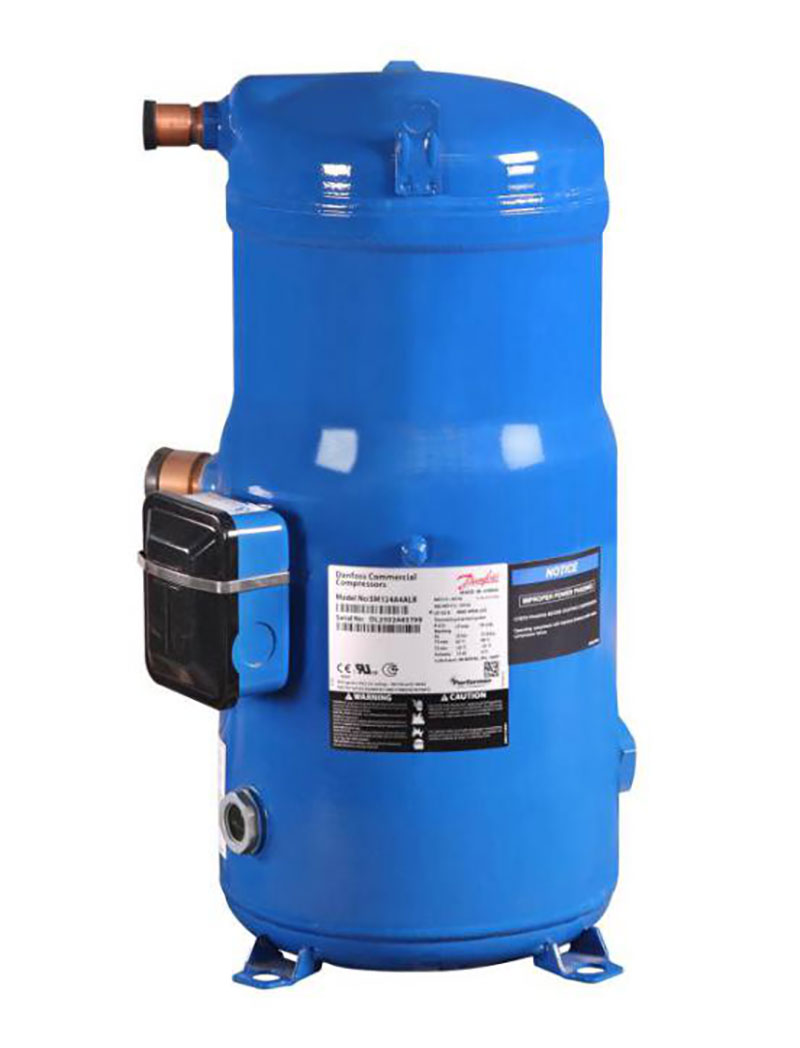

Use the world famous Danfoss hermetic scroll type compressor, features low noise, low vibration, low energy consumption and high efficiency.

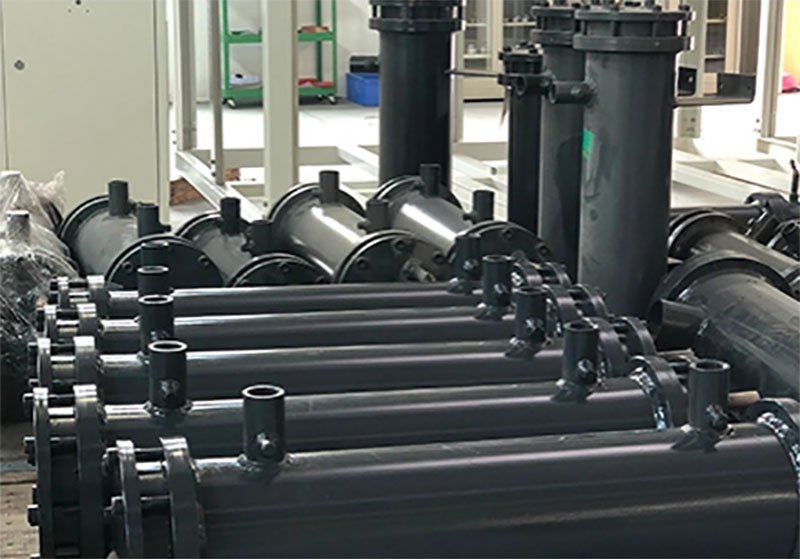

Simple structure, stable quality and high heat transfer performance.

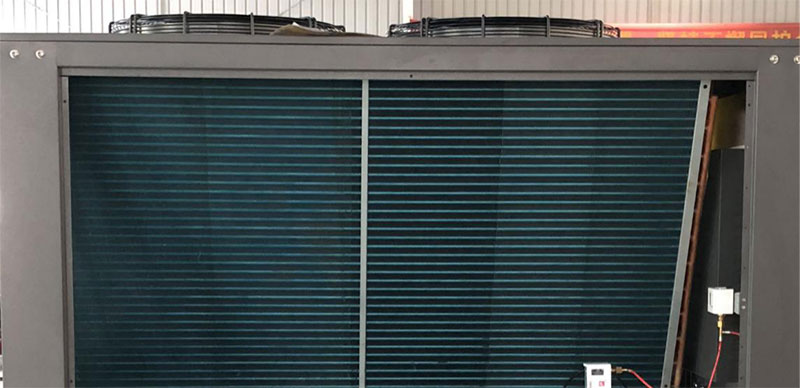

The condenser of the air cooled chiller unit is made of aluminum fins and row column tubes to guarantee the high efficiency of heat exchange.

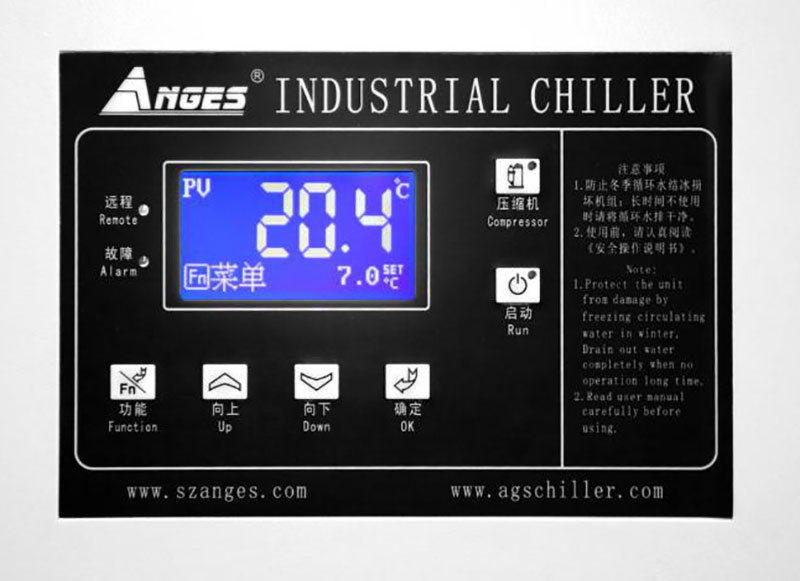

Precise digital display temperature controller is provided to precisely control water temperature with variation of ±1℃.Temperature can be set in the range from 5℃ to 35℃.

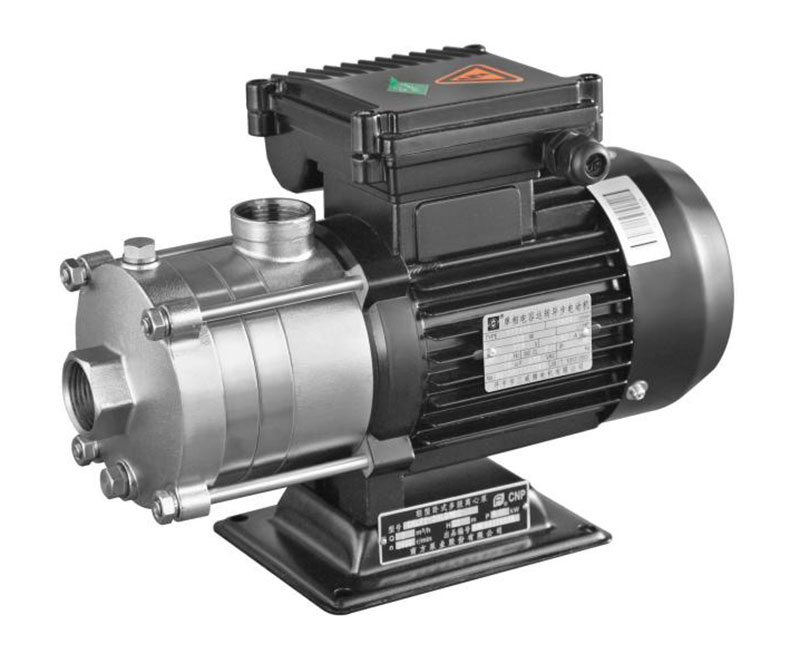

Stainless steel water pump featuring wide working range, low noise, reliable performance.

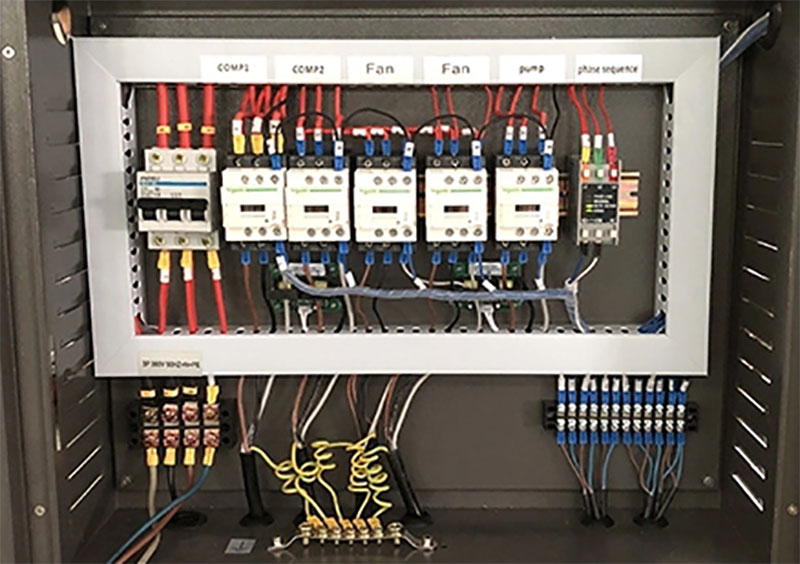

Safety features, such as phase failure protection, flow switch protection, high and low pressure protection and over-heating protection. Higher reliability, low breakdown rate and perfect service system.

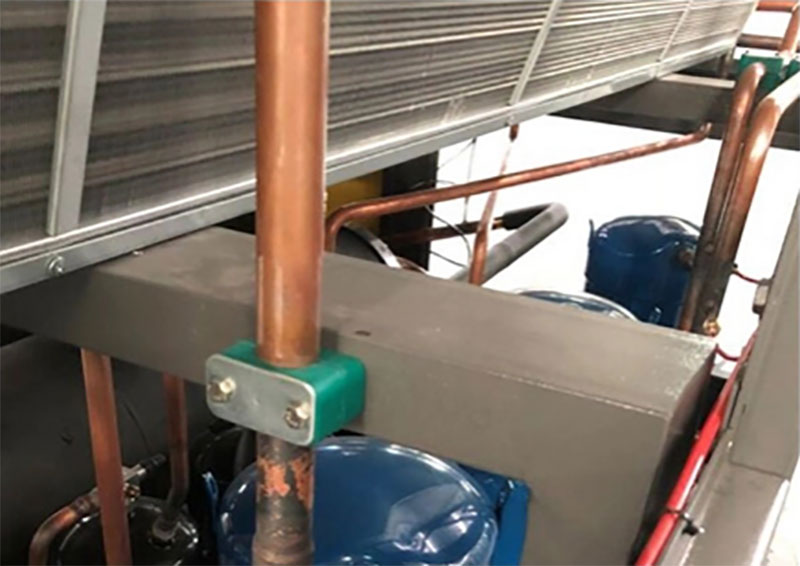

Redesign the route of the pipes and fix the pipes to prevent refrigerant leakage caused by vibration.

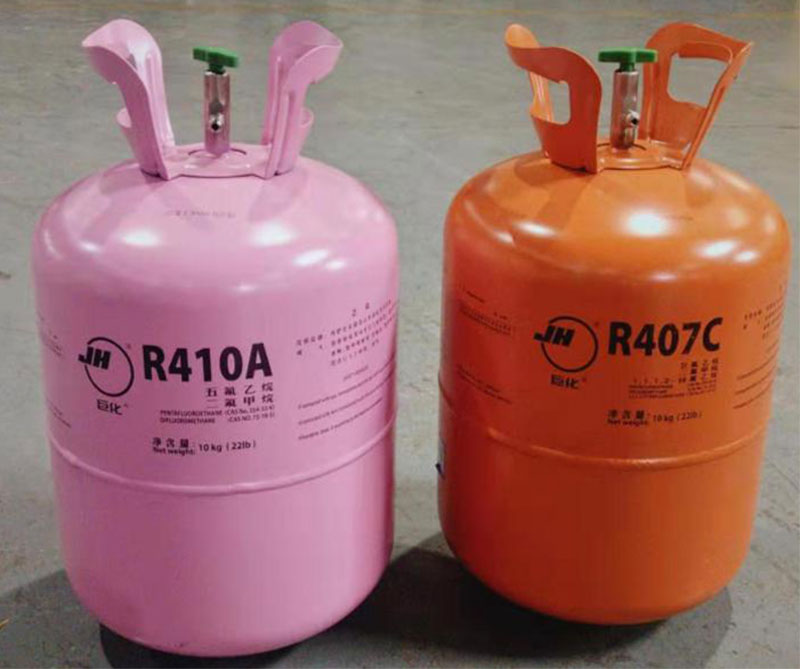

Environment-friendly refrigerant R407C, R410A, R134a, etc, which is no harm to the ozone layer.
Why choose us?
1.Anges has passed the ISO9001 international quality system certification, also many products have got the CE certification.
2.Anges currently has several independent research patents.
3.we also have many agents in Indonesia, Thailand,and other countries, to fully ensure that every user to enjoy a high quality after-sale service when they using Anges products.
Company Information:
Shenzhen Anges Machinery Co., Ltd is located in the forefront of China's reform and opening up city-Shenzhen. Since it founded in 2004，it always adhere the idea of "Let's freeze the industry”, Anges has developed into the word's leading industrial refrigerate equipment supplier.
FAQ:
Q:What is the working principle of chiller?
Chillers use either a vapor-compression or absorption refrigerant cycle to cool a fluid for heat transfer.
Q:What types of compressors are typically installed on water chillers?
Water chillers use scroll,screw, reciprocating, rotary or centrifugal compressors.
Reciprocating, scroll, or rotary helical compressors are used in smaller machines.
Q:How do chiller compressors work?
Compressors are the driving force in a vapor-compression chiller and act as a pump for the refrigerant. Compressed refrigerant gas is sent from the compressor to a condenser unit that rejects the heat energy from the refrigerant to cooling water or air outside of the system.
Q:What's the difference between a chiller and air conditioning?
Cooled liquid passes through pipes in a building and coils in air handlers or through fan-coil units, which help dehumidify the air. Generally, chillers are air and water cooled. ... Water cooled chillers are usually located internally and water is recycled to a heat sink or external cooling method.
AC-H series Heat and Cold Chillers, with dual-purpose for offering hot and cold water designed by ANGES, is widely used in sponge manufacturing, sauna and swimming pool, composite materials foam, medicine and chemical industries.
