Integrated Water-cooled Screw Chiller

Integrated water-cooled screw chiller is an integrated industrial cooling unit containing chiller, water pump, water tank and control panel,easy to install and easy to operate, greatly lowering installation cost.
  • attribute
  • photos

Integrated Water-cooled Screw Chiller

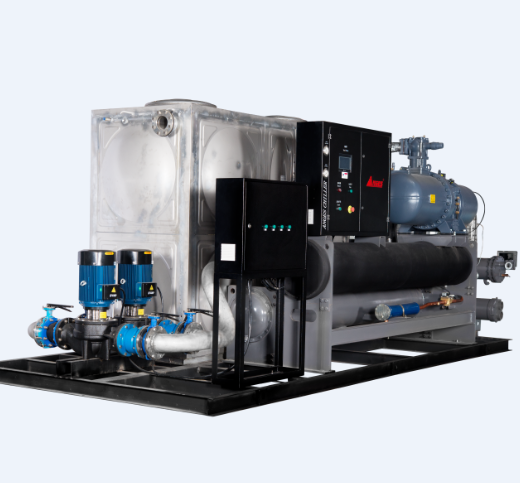

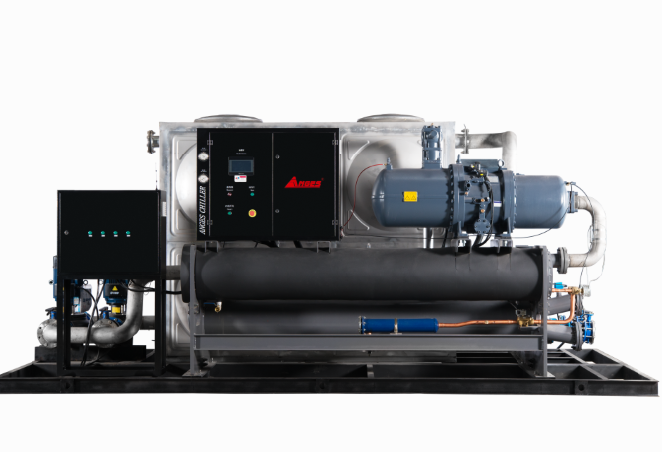

This integrated water-cooled screw chiller is an integrated industrial cooling unit containing chiller, water pump, water tank and control panel. The integrated water-cooled chiller is easy to install and easy to operate, greatly lowering installation cost.

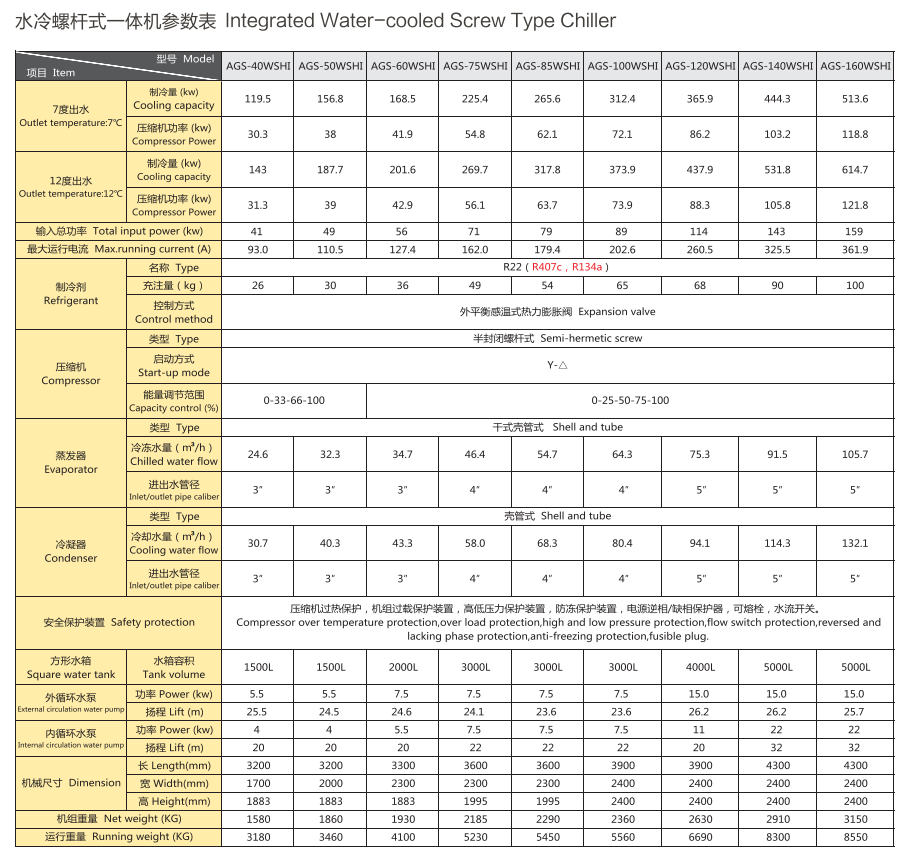

Our integrated water-cooled screw chillers are available in over 10 models, giving customers a wide choice of cooling capacities from 143kW up to 805kW. Please tell us your requirements, our professional engineers are delighted to recommend appropriate industrial chiller to meet your specific application needs .


Features
  • Adopting multi-stage adjustment, it can realize four stages (25%-50%-75%-100%) and three stages (33%-66%-100%) of capacity control; Or non-stage capacity control;
  • Constructed with high-quality components from world's leading brands like Bitzer compressor, Hanbell compressor, Siemens PLC control to guarantee high-precision control;
  • Refrigerant R22, R407C, R410A, R134A are optional;
  • Shell & tube condenser is adopted, simple structure and high stability of heat transfer;
  • Screw compressor has a simple structure, containing fewer moving parts and wear parts (only 1/10 the moving parts of piston compressor), low failure rate, long service life and low maintenance cost;
  • Stepless variable-speed control can be achieved within a range of 10%-100%, improving energy efficiency;
  • Siemens PLC control system, the integrated controller automatically operates and alerts when any faults occur;
Integrated Water-cooled Screw ChillerIntegrated Water-cooled Screw ChillerIntegrated Water-cooled Screw Chiller
