Industrial Water Chiller Plant Machine AGS-085WSH

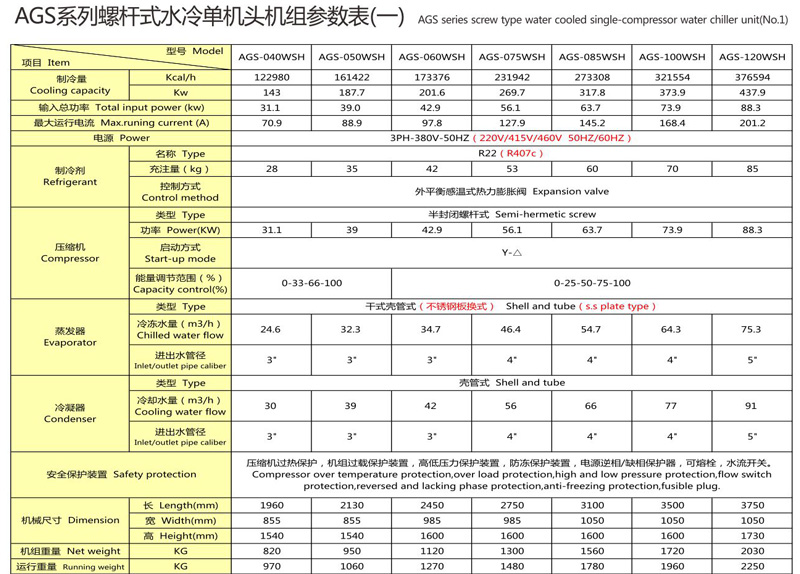

Specification

Model Item	AGS-085WSH
nominal cooling capacity	kcal/h	273308
nominal cooling capacity	kw	317.8
input power	kw	76.44
max.runing current	A	166
power supply	3PH 380V 50HZ
refrigerant	type	R22/R407c/R410a/R134a
	kg	60
	type of control	expansion valve
compressor	type	sewi-hermetic screw
	power(kw)	63.7
	start-up mode	Y-△
	capacity control(%)	0-25-50-75-100
evaporator	type	Shell and tube
	chilled water flow(m³/h)	54.7
	inlet and outlet pipe caliber(inch)	4
condenser	type	shell and tube
	cooling water flow(m³/h)	68
	inlet and outlet pipe caliber(inch)	4
safety protection	compressor overheating protection, over-current protection, high and low pressure,over-temperature protection, flow switch, protection,phase sequence or missing phase protection, exhaust overheating protection
weight	kg	1560
dimension	mm	*310010501600*

Note: 1.Nominal cooling capacity is according to:

Inlet chilled fluid temperature: 17℃ Outlet chilled fluid temperature: 12℃

Inlet cooling water temperature: 30℃ Outlet cooling water temperature: 35℃

2. Working Range:

The temperature range of chilled fluid is from 5℃ to 35℃;

Temperature difference between inlet and outlet chilled fluid is from 3℃ to 8℃.

The temperature range of cooling water is from 18℃ to 37℃;

Temperature difference between inlet and outlet cooling water is from 3.5℃ to 10℃.

We reserve the right to modify the above dimensions or parameters without further notice.

Industrial Water Chiller Plant Machine AGS-085WSH

Details

Industrial water chiller plant machine use the world famous brand new type and high-efficient screw-rotor compressor,with efficiency 20%-30% higher than those common ones.It has obtained several patents of Europe and America countries and passed the international quality certification of ISO9001.

Industrial water chiller plant machine

Simple structure, stable quality and high heat transfer performance.

Precise digital display temperature controller is provided to precisely control water temperature with variation of ±1℃.Temperature can be set in the range from 5℃ to 35℃.

Stainless steel water pump featuring wide working range, low noise, reliable performance.

Safety features, such as phase failure protection, flow switch protection, high and low pressure protection and over-heating protection. Higher reliability, low breakdown rate and perfect service system.

Redesign the route of the pipes and fix the pipes to prevent refrigerant leakage caused by vibration.

Environment-friendly refrigerant R407C, R410A, R134a, etc, which is no harm to the ozone layer.

All products of Water-cooled Screw Chillers Series

Why choose us?

1.Anges has passed the ISO9001 international quality system certification, also many products have got the CE certification.

2.Anges currently has several independent research patents.

3.We also have many agents in Indonesia, Thailand,and other countries, to fully ensure that every user to enjoy a high quality after-sale service when they using Anges products.

Company Information:

Shenzhen Anges Machinery Co., Ltd is located in the forefront of China's reform and opening up city-Shenzhen. Since it founded in 2004，it always adhere the idea of "Let's freeze the industry”, Anges has developed into the word's leading industrial refrigerate equipment supplier.

FAQ:

Q:What is a water box on a chiller?
Water boxes are mounted to the evaporators and also the condensers of watercooled chillers. The purpose of the water box is to direct flow as well as as to segregate the entrance and exit.

Q:What is forced draft cooling tower?
Induced draft implies an inlet fan placed on top of the cooling tower and the creation of low pressure. Axial fans are always used for this type of draft. Forced draft means an exhaust fan placed at the base of the cooling tower which then causes over pressure.

Q:What are the main components of a chiller?
The main chiller components are the Compressor, Condenser, Evaporator, Expansion Valve, Power Panel, Controls unit and the Water Box.

What are the components of a cooling tower?
Cooling tower packing. Cooling tower packing is one of the most important parts of a cooling tower. ...
Drift separators. Drift separators have the purpose of preventing droplets or smaller aerosols from being taken by the air flow from the cooling tower.Gear and fans. Water distribution system.Air intake louvers.
