Screw Compressor Water Cooled Water Chiller AGS-120WDH

Screw Compressor Water Cooled Water Chiller AGS-120WDH

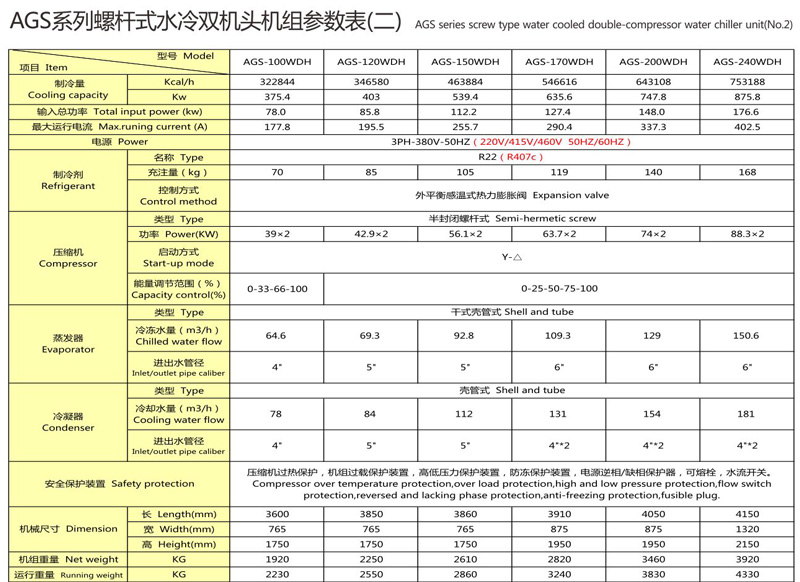

Specification

Note: 1.Nominal cooling capacity is according to:

  Inlet chilled fluid temperature: 17℃ Outlet chilled fluid temperature: 12℃

  Inlet cooling water temperature: 30℃ Outlet cooling water temperature: 35℃

     2. Working Range:

  The temperature range of chilled fluid is from 5℃ to 35℃;

  Temperature difference between inlet and outlet chilled fluid is from 3℃ to 8℃.

  The temperature range of cooling water is from 18℃ to 37℃;

Temperature difference between inlet and outlet cooling water is from 3.5℃ to 10℃.

We reserve the right to modify the above dimensions or parameters without further notice.

Screw Compressor Water Cooled Water Chiller AGS-120WDH

Details

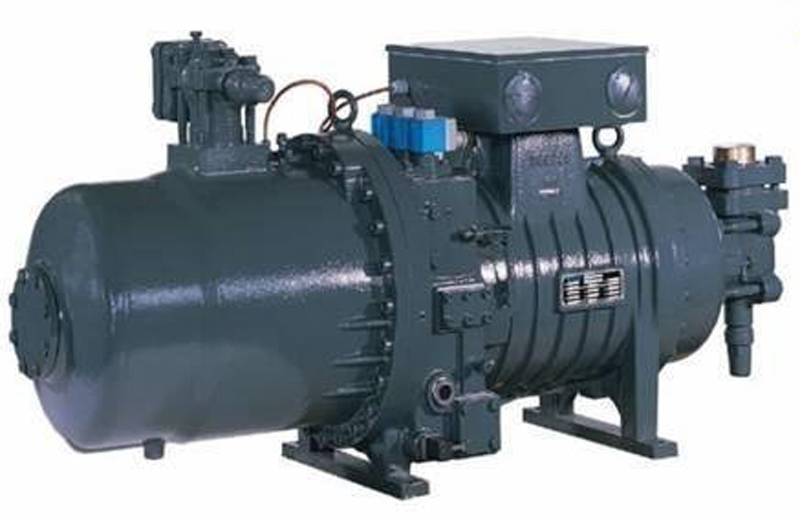

Water cooled screw chiller use the world famous brand new type and high-efficient screw-rotor compressor,with efficiency 20%-30% higher than those common ones.It has obtained several patents of Europe and America countries and passed the international quality certification of ISO9001.

Simple structure, stable quality and high heat transfer performance.

Precise digital display temperature controller is provided to precisely control water temperature with variation of ±1℃.Temperature can be set in the range from 5℃ to 35℃.

Stainless steel water pump featuring wide working range, low noise, reliable performance.

Safety features, such as phase failure protection, flow switch protection, high and low pressure protection and over-heating protection. Higher reliability, low breakdown rate and perfect service system.

Redesign the route of the pipes and fix the pipes to prevent refrigerant leakage caused by vibration.

Environment-friendly refrigerant R407C, R410A, R134a, etc, which is no harm to the ozone layer.

All products of Water-cooled Screw Chillers Series

Why choose us?

1.Anges has passed the ISO9001 international quality system certification,  also many products have got the CE certification.

2.Anges currently has several independent research patents.

3.We also have many agents in Indonesia, Thailand,and other countries, to fully ensure that every user to enjoy a high quality after-sale service when they using Anges products.

Company Information:

Shenzhen Anges Machinery Co., Ltd is located in the forefront of China's reform and opening up city-Shenzhen. Since it founded in 2004，it always adhere the idea of "Let's freeze the industry”, Anges has developed into the word's leading industrial refrigerate equipment supplier.

FAQ:

Q:What is the difference between a cooling tower and chiller?

The condenser heat exchanger is the major component that rejects heat from thechillers to air. Cooling towers are generally used to provide cooled water to electric power generation and mechanical processes. A cooling tower uses pumps to circulate the water supply.

Q:Why are screw compressors used?
screw compressor is commonly used to replace piston compressors. It is required where large volumes of high-pressure air are needed. It is also used in large industrial applications or to operate high-power air tools such as jackhammers.

Q:Which refrigerant is used in chiller?
Currently used refrigerants in Vapor compression units: R410A, R407C, R134a, R404a. R22 is being phased out.

Q:Do cooling towers pollute?
Water that is applied in cooling towers, even when this concerns tap water, often contains salts (such as chlorine, sulphates and carbonates), dissolved gases (such as oxygen and carbon dioxide) and metal ions (such as iron and manganese ions). The presence of these pollutants can cause a series of problems.
