150 Ton Industrial Water Chiller Unit AGS-150WDH

Specification

Model Item	AGS-150WDH
nominal cooling capacity	kcal/h	423120
nominal cooling capacity	kw	539.4
input power	kw	135
max.runing current	A	288
power supply	3PH 380V 50HZ
refrigerant	type	R22/R407c/R410a/R134a
	kg	105
	type of control	expansion valve
compressor	type	sewi-hermetic screw
	power(kw)	*56.12**
	start-up mode	Y-△
	capacity control(%)	0-25-50-75-100
evaporator	type	Shell and tube
	chilled water flow(m³/h)	84.6
	inlet and outlet pipe caliber(inch)	5
condenser	type	shell and tube
	cooling water flow(m³/h)	116
	inlet and outlet pipe caliber(inch)	5
safety protection	compressor overheating protection, over-current protection, high and low pressure,over-temperature protection, flow switch, protection,phase sequence or missing phase protection, exhaust overheating protection
weight	kg	2610
dimension	mm	*38607651750*

Note: 1.Nominal cooling capacity is according to:

Inlet chilled fluid temperature: 17℃ Outlet chilled fluid temperature: 12℃

Inlet cooling water temperature: 30℃ Outlet cooling water temperature: 35℃

2. Working Range:

The temperature range of chilled fluid is from 5℃ to 35℃;

Temperature difference between inlet and outlet chilled fluid is from 3℃ to 8℃.

The temperature range of cooling water is from 18℃ to 37℃;

Temperature difference between inlet and outlet cooling water is from 3.5℃ to 10℃.

We reserve the right to modify the above dimensions or parameters without further notice.

150 Ton Industrial Water Chiller Unit AGS-150WDH

Details

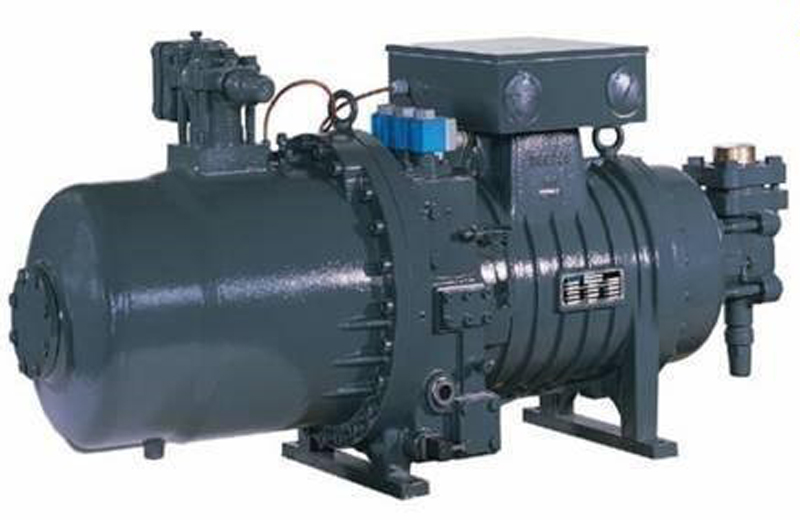

Using the world famous brand new type and high-efficient screw-rotor compressor,with efficiency 20%-30% higher than those common ones.It has obtained several patents of Europe and America countries and passed the international quality certification of ISO9001.

150 Ton Industrial Water Chiller Unit

Simple structure, stable quality and high heat transfer performance.

Precise digital display temperature controller is provided to precisely control water temperature with variation of ±1℃.Temperature can be set in the range from 5℃ to 35℃.

Stainless steel water pump featuring wide working range, low noise, reliable performance.

Safety features, such as phase failure protection, flow switch protection, high and low pressure protection and over-heating protection. Higher reliability, low breakdown rate and perfect service system.

Redesign the route of the pipes and fix the pipes to prevent refrigerant leakage caused by vibration.

Environment-friendly refrigerant R407C, R410A, R134a, etc, which is no harm to the ozone layer.

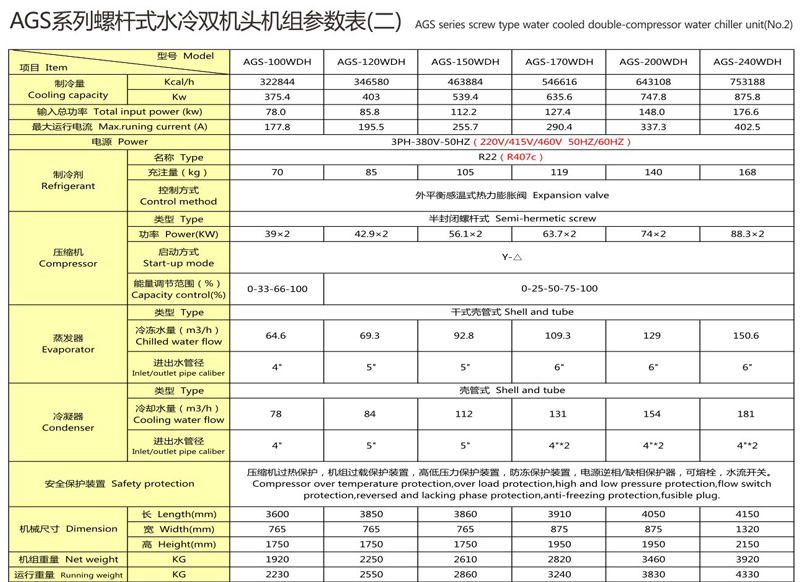

All products of Water-cooled Screw Chillers Series

Why choose us?

1.Anges has passed the ISO9001 international quality system certification, also many products have got the CE certification.

2.Anges currently has several independent research patents.

3.We also have many agents in Indonesia, Thailand,and other countries, to fully ensure that every user to enjoy a high quality after-sale service when they using Anges products.

Company Information:

Shenzhen Anges Machinery Co., Ltd is located in the forefront of China's reform and opening up city-Shenzhen. Since it founded in 2004，it always adhere the idea of "Let's freeze the industry”, Anges has developed into the word's leading industrial refrigerate equipment supplier.

FAQ:

Q:What is a water chiller used for?
A water chiller is a mechanical device used to facilitate heat exchange from water to a refrigerant in a closed loop system.

Q:How does a water cooled chiller work?
The process water is the means by which heat transfers from the process to the chiller.

Q:Which refrigerant is used in chiller?
Currently used refrigerants in Vapor compression units: R410A, R407C, R134a, R404a. R22 is being phased out.

Q:Do cooling towers pollute?
Water that is applied in cooling towers, even when this concerns tap water, often contains salts (such as chlorine, sulphates and carbonates), dissolved gases (such as oxygen and carbon dioxide) and metal ions (such as iron and manganese ions). The presence of these pollutants can cause a series of problems.
