Water Cooled Screw Chiller System AGS-040WSH

Water Cooled Screw Chiller System AGS-040WSH

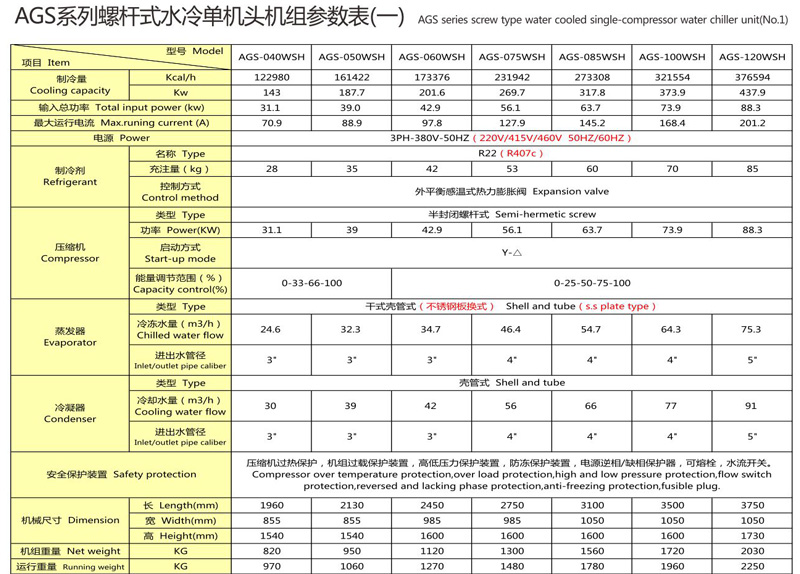

Specification

Note: 1.Nominal cooling capacity is according to:

  Inlet chilled fluid temperature: 17℃ Outlet chilled fluid temperature: 12℃

  Inlet cooling water temperature: 30℃ Outlet cooling water temperature: 35℃

     2. Working Range:

  The temperature range of chilled fluid is from 5℃ to 35℃;

  Temperature difference between inlet and outlet chilled fluid is from 3℃ to 8℃.

  The temperature range of cooling water is from 18℃ to 37℃;

Temperature difference between inlet and outlet cooling water is from 3.5℃ to 10℃.

We reserve the right to modify the above dimensions or parameters without further notice.

Water Cooled Screw Chiller System AGS-040WSH

Details

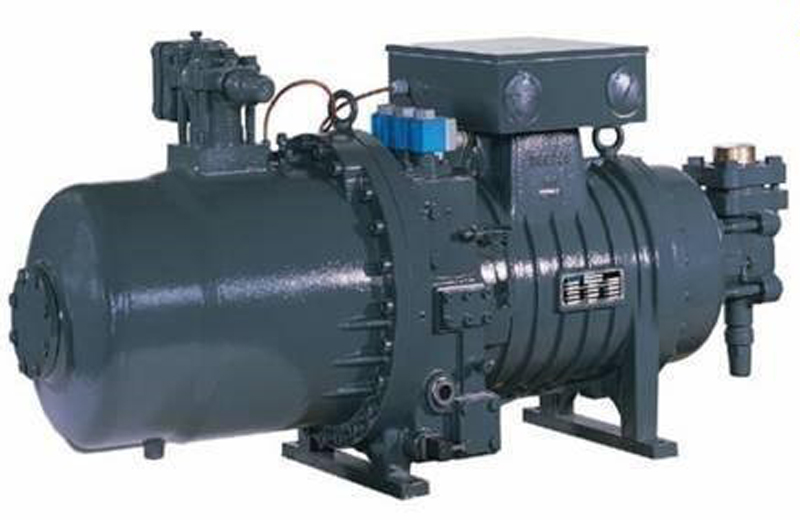

Using the world famous brand new type and high-efficient screw-rotor compressor,with efficiency 20%-30% higher than these common ones.It has obtained several patents of Europe and America countries and passed the international quality certification of ISO9001.

Simple structure, stable quality and high heat transfer performance.

Precise digital display temperature controller is provided to precisely control water temperature with variation of ±1℃.Temperature can be set in the range from 5℃ to 35℃.

Stainless steel water pump featuring wide working range, low noise, reliable performance.

Safety features, such as phase failure protection, flow switch protection, high and low pressure protection and over-heating protection. Higher reliability, low breakdown rate and perfect service system.

Redesign the route of the pipes and fix the pipes to prevent refrigerant leakage caused by vibration.

Environment-friendly refrigerant R407C, R410A, R134a, etc, which is no harm to the ozone layer.

All products of Water-cooled Screw Chillers Series

Why choose us?

1.Anges has passed the ISO9001 international quality system certification,  also many products have got the CE certification.

2.Anges currently has several independent research patents.

3.We also have many agents in Indonesia, Thailand,and other countries, to fully ensure that every user to enjoy a high quality after-sale service when they using Anges products.

Company Information:

Shenzhen Anges Machinery Co., Ltd is located in the forefront of China's reform and opening up city-Shenzhen. Since it founded in 2004，it always adhere the idea of "Let's freeze the industry”, Anges has developed into the word's leading industrial refrigerate equipment supplier.

Package and Delivery

1. Standard Export Wooden Case;

2. We can make trade terms of FOB、CIF、DAP、DDU and DDP with clients;

3. Usually, it is ok to be deliveried about 35 days for standard chiller;

FAQ:

Q:Why are water cooled chillers more efficient than air cooled chillers?
Water-cooled chillers are more efficient because its condense depending on the ambient temperature bulb temperature, which is lower than the ambient dry bulb temperature. The lower a chiller condenses, the more efficient it is.

Q:What is screw chiller?
A chiller is a machine that removes heat from a liquid via a vapor-compression or absorption refrigeration cycle. ... Water chillers can be water-cooled, air-cooled, or evaporatively cooled. Water-cooled systems can provide efficiency and environmental impact advantages over air-cooled systems.

Q:What is shell and tube evaporator?
The main function of Shell & Tube Type Evaporator is to act as a heat exchanger in a vessel form. This is mainly done to cool closed circuit for re-circulating fluid flow. This can be done with the help of refrigerants as a cooling medium. They are efficient in working and having compact design.

Q:Are chillers and cooling towers the same?
Roof top chillers are usually “Air cooled” whereas basement chillers are usually “Water cooled” but they both perform the same function which is to generate cold water for air conditioning by removing the unwanted heat from the building. The only difference is how the chiller discards the unwanted heat.
