Industrial Water Cooled Water Circulation System Chiller Plant AGS-060WSH

Industrial  Water Cooled Water Circulation System Chiller Plant AGS-060WSH

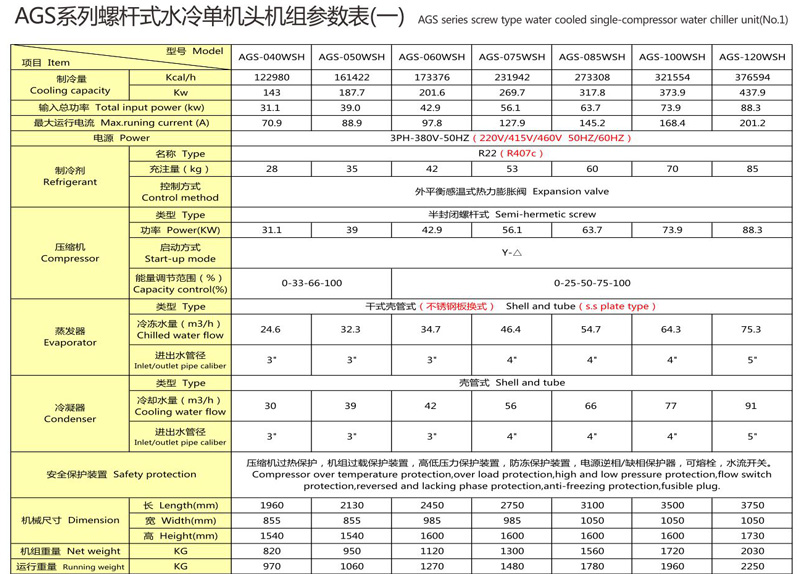

Specification

Note: 1.Nominal cooling capacity is according to:

  Inlet chilled fluid temperature: 17℃ Outlet chilled fluid temperature: 12℃

  Inlet cooling water temperature: 30℃ Outlet cooling water temperature: 35℃

     2. Working Range:

  The temperature range of chilled fluid is from 5℃ to 35℃;

  Temperature difference between inlet and outlet chilled fluid is from 3℃ to 8℃.

  The temperature range of cooling water is from 18℃ to 37℃;

Temperature difference between inlet and outlet cooling water is from 3.5℃ to 10℃.

We reserve the right to modify the above dimensions or parameters without further notice.

Industrial  Water Cooled Water Circulation System Chiller Plant AGS-060WSH

Details

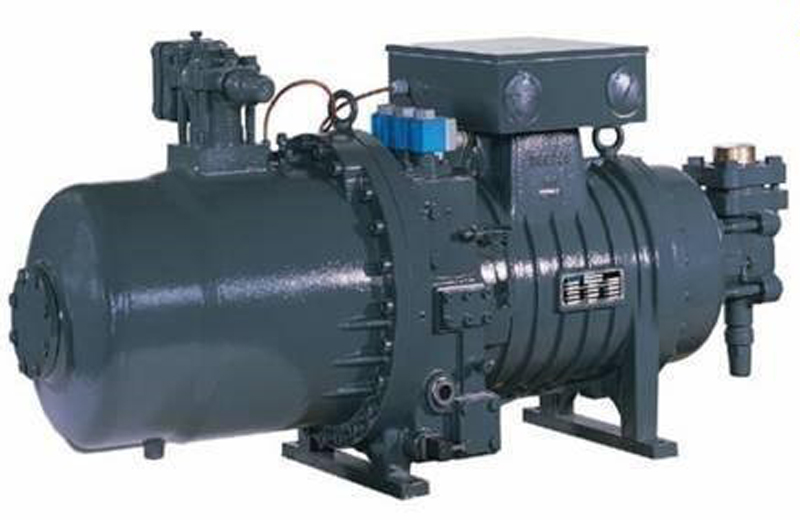

Industrial water cooled circulation system chiller plant use the world famous brand new type and high-efficient screw-rotor compressor,with efficiency 20%-30% higher than those common ones.It has obtained several patents of Europe and America countries and passed the international quality certification of ISO9001.

Simple structure, stable quality and high heat transfer performance.

Precise digital display temperature controller is provided to precisely control water temperature with variation of ±1℃.Temperature can be set in the range from 5℃ to 35℃.

Stainless steel water pump featuring wide working range, low noise, reliable performance.

Safety features, such as phase failure protection, flow switch protection, high and low pressure protection and over-heating protection. Higher reliability, low breakdown rate and perfect service system.

Redesign the route of the pipes and fix the pipes to prevent refrigerant leakage caused by vibration.

Environment-friendly refrigerant R407C, R410A, R134a, etc, which is no harm to the ozone layer.

All products of Water-cooled Screw Chillers Series

Why choose us?

1.Anges has passed the ISO9001 international quality system certification,  also many products have got the CE certification.

2.Anges currently has several independent research patents.

3.We also have many agents in Indonesia, Thailand,and other countries, to fully ensure that every user to enjoy a high quality after-sale service when they using Anges products.

Company Information:

Shenzhen Anges Machinery Co., Ltd is located in the forefront of China's reform and opening up city-Shenzhen. Since it founded in 2004，it always adhere the idea of "Let's freeze the industry”, Anges has developed into the word's leading industrial refrigerate equipment supplier.

FAQ:

Q:What is the purpose of a cooling tower in a water cooled system?
 The cooling tower is the unit in a water-cooled system that rejects the heat into the atmoshere. Spreading the water out as it passes though the cooling tower helps the water ---- faster.

Q:What is a water cooled chiller system?
A chiller is a machine that removes heat from a liquid via a vapor-compression or absorption refrigeration cycle. This liquid can then be circulated through a heat exchanger to cool equipment, or another process stream (such as air or process water).

Q:Why refrigerant is used in cooling systems?
As refrigerant absorbs heat from indoor air, it transitions from a low-pressure gas to a high-pressure liquid.  The refrigerant then cools down and turns back into a low-pressure gas.

Q:What is the difference between chilled water and cooling water?
What is the difference between the chilled water and the cooling water? ...Cooling water is water used as a heat-transfer medium to carry heat away from one or more parts of a system. Sometimes chilled water is used as cooling water, but it's generally cheaper to use water starting at ambient temperature.
