item no.:
AGS-120WSHlead time:
30 daysproduct orgin:
Chinashipping port:
shenzhenpayment:
FOB/CIF/CFRcolor:
whiteScrew Compressor Industrial Water Chiller System AGS-120WSH

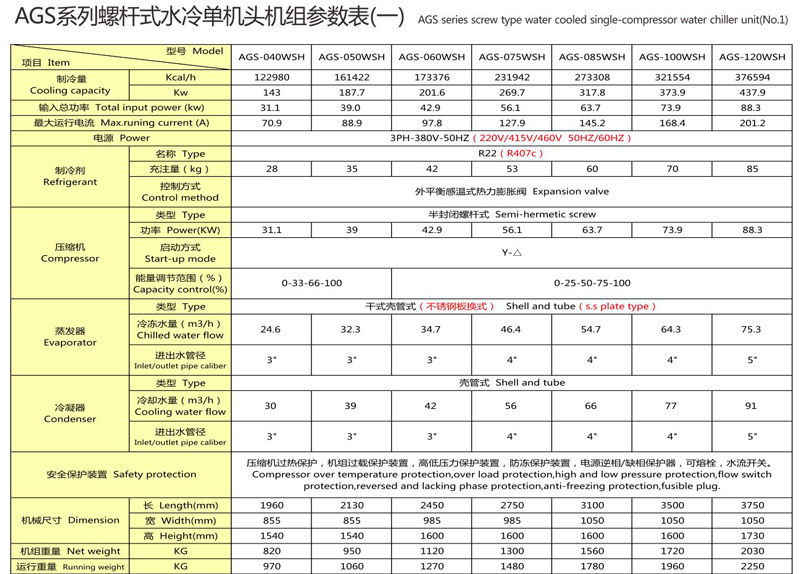

Specification
|
Model Item |
AGS-120WSH |
|
|
nominal cooling capacity |
kcal/h |
376594 |
|
kw |
437.9 |
|
|
input power |
kw |
88.3 |
|
max.runing current |
A |
234 |
|
power supply |
3PH 380V 50HZ |
|
|
refrigerant |
type |
R22/R407c/R410a/R134a |
|
kg |
85 |
|
|
type of control |
expansion valve |
|
|
compressor |
type |
sewi-hermetic screw |
|
88.3 |
||
|
start-up mode |
Y-△ |
|
|
capacity control(%) |
0-25-50-75-100 |
|
|
evaporator |
type |
Shell and tube |
|
chilled water flow(m3/h) |
75.3 |
|
|
5 |
||
|
condenser |
type |
shell and tube |
|
cooling water flow(m3/h) |
94 |
|
|
inlet and outlet pipe caliber(inch) |
5 |
|
|
safety protection |
compressor overheating protection, over-current protection, high and low pressure,over-temperature protection, flow switch, protection,phase sequence or missing phase protection, exhaust overheating protection |
|
|
weight |
kg |
2030 |
|
dimension |
mm |
3750*1050*1730 |
Note: 1.Nominal cooling capacity is according to:
Inlet chilled fluid temperature: 17℃ Outlet chilled fluid temperature: 12℃
Inlet cooling water temperature: 30℃ Outlet cooling water temperature: 35℃
2. Working Range:
The temperature range of chilled fluid is from 5℃ to 35℃;
Temperature difference between inlet and outlet chilled fluid is from 3℃ to 8℃.
The temperature range of cooling water is from 18℃ to 37℃;
Temperature difference between inlet and outlet cooling water is from 3.5℃ to 10℃.
We reserve the right to modify the above dimensions or parameters without further notice.
Screw Compressor Industrial Water Chiller System AGS-120WSH
Details
Industrial water chiller system use the world famous brand new type and high-efficient screw-rotor compressor,with efficiency 20%-30% higher than those common ones.It has obtained several patents of Europe and America countries and passed the international quality certification of ISO9001.
Simple structure, stable quality and high heat transfer performance.
Precise digital display temperature controller is provided to precisely control water temperature with variation of ±1℃.Temperature can be set in the range from 5℃ to 35℃.
Stainless steel water pump featuring wide working range, low noise, reliable performance.
Safety features, such as phase failure protection, flow switch protection, high and low pressure protection and over-heating protection. Higher reliability, low breakdown rate and perfect service system.
Redesign the route of the pipes and fix the pipes to prevent refrigerant leakage caused by vibration.
Environment-friendly refrigerant R407C, R410A, R134a, etc, which is no harm to the ozone layer.
All products of Water-cooled Screw Chillers Series
Why choose us?
1.Anges has passed the ISO9001 international quality system certification, also many products have got the CE certification.
2.Anges currently has several independent research patents.
3.We also have many agents in Indonesia, Thailand,and other countries, to fully ensure that every user to enjoy a high quality after-sale service when they using Anges products.
Company Information:
Shenzhen Anges Machinery Co., Ltd is located in the forefront of China's reform and opening up city-Shenzhen. Since it founded in 2004，it always adhere the idea of "Let's freeze the industry”, Anges has developed into the word's leading industrial refrigerate equipment supplier.
FAQ:
Q:What is a water box on a chiller?
Water boxes are mounted to the evaporators and also the condensers of watercooled chillers. The purpose of the water box is to direct flow as well as as to segregate the entrance and exit.
Q:What is a water cooled chiller system?
A chiller is a machine that removes heat from a liquid via a vapor-compression or absorption refrigeration cycle. This liquid can then be circulated through a heat exchanger to cool equipment, or another process stream (such as air or process water).
Q:What are the main components of a chiller?
The main chiller components are the Compressor, Condenser, Evaporator, Expansion Valve, Power Panel, Controls unit and the Water Box.
Q:What is the difference between chilled water and cooling water?
What is the difference between the chilled water and the cooling water? ...Cooling water is water used as a heat-transfer medium to carry heat away from one or more parts of a system. Sometimes chilled water is used as cooling water, but it's generally cheaper to use water starting at ambient temperature.
AGS series screw type water cooled water chiller designed with efficient silicon steel and special slots, and equipped with the inside and outside all around design to cool the flow channel so to ensure maximum efficiency of the compressor motor under any load.High efficiency double filtration oil separator ensures maximun heat exchage.Efficient, low noise and small vibration.
AGS series screw type water cooled water chiller designed with efficient silicon steel and special slots, and equipped with the inside and outside all around design to cool the flow channel so to ensure maximum efficiency of the compressor motor under any load.High efficiency double filtration oil separator ensures maximun heat exchage.Efficient, low noise and small vibration.
AGS series screw type water cooled water chiller designed with efficient silicon steel and special slots, and equipped with the inside and outside all around design to cool the flow channel so to ensure maximum efficiency of the compressor motor under any load.High efficiency double filtration oil separator ensures maximun heat exchage.Efficient, low noise and small vibration.
AGS series screw type water cooled water chiller designed with efficient silicon steel and special slots, and equipped with the inside and outside all around design to cool the flow channel so to ensure maximum efficiency of the compressor motor under any load.High efficiency double filtration oil separator ensures maximun heat exchage.Efficient, low noise and small vibration.
AGS series screw type water cooled water chiller designed with efficient silicon steel and special slots, and equipped with the inside and outside all around design to cool the flow channel so to ensure maximum efficiency of the compressor motor under any load.High efficiency double filtration oil separator ensures maximun heat exchage.Efficient, low noise and small vibration.
AGS series screw type water cooled water chiller designed with efficient silicon steel and special slots, and equipped with the inside and outside all around design to cool the flow channel so to ensure maximum efficiency of the compressor motor under any load.High efficiency double filtration oil separator ensures maximun heat exchage.Efficient, low noise and small vibration.
