30.1kw High Efficiency Air Cooled Style Industrial Chiller ACK-10(D)

30.1kw High Efficiency Air Cooled Style Industrial Chiller ACK-10(D)

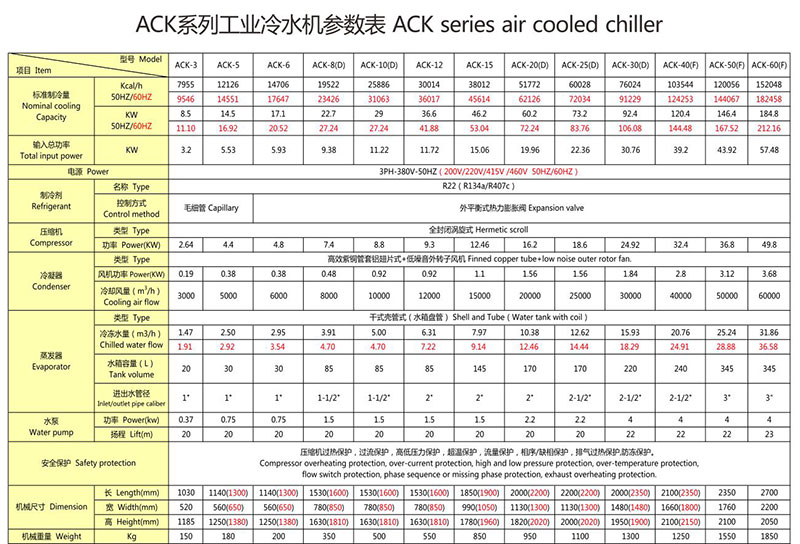

Specification

Note: 1.Nominal cooling capacity is according to:

      Inlet chilled fluid temperature: 17℃

      Outlet chilled fluid temperature: 12℃

      Inlet cooling air temperature: 30℃

      Outlet cooling air temperature: 35℃

    2. Working Range:

      The temperature range of chilled fluid is from 5℃ to 35℃;

      Temperature difference between inlet and outlet chilled fluid is from 3℃ to 8℃.

      It is better to run the chiller while the ambient temperature at or below 35℃.

     We reserve the right to modify the above dimensions or parameters without further notice.

30.1kw High Efficiency Air Cooled Style Industrial Chiller ACK-10(D)

Details

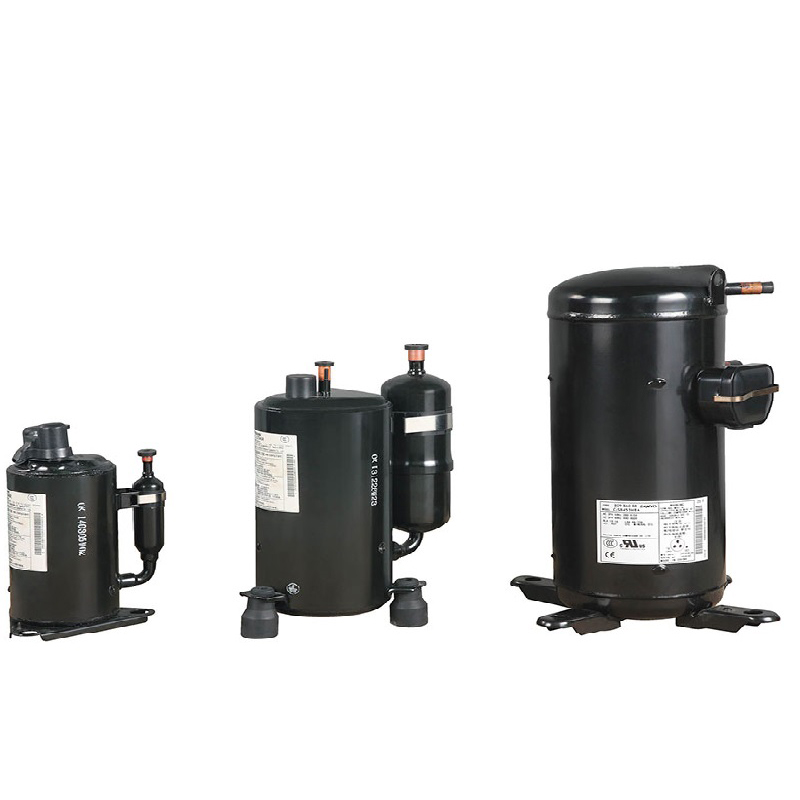

Air cooled style industrial chiller use the world famous Panasonic hermetic scroll type compressor, features low noise, low vibration, low energy consumption and high efficiency.

Simple structure, stable quality and high heat transfer performance.

The condenser of the air cooled chiller unit is made of aluminum fins and row column tubes to guarantee the high efficiency of heat exchanger.

Precise digital display temperature controller is provided to precisely control water temperature with variation of ±1℃.Temperature can be set in the range from 5℃ to 35℃.

Stainless steel water pump featuring wide working range, low noise, reliable performance.

Safety features, such as phase failure protection, flow switch protection, high and low pressure protection and over-heating protection. Higher reliability, low breakdown rate and perfect service system.

Redesign the route of the pipes and fix the pipes to prevent refrigerant leakage caused by vibration.

Environment-friendly refrigerant R407C, R410A, R134a, etc, which is no harm to the ozone layer.

All products of ACK Series

Why choose us?

1.Anges has passed the ISO9001 international quality system certification,  also many products have got the CE certification.

2.Anges currently has several independent research patents.

3.we also have many agents in Indonesia, Thailand,and other countries, to fully ensure that every user to enjoy a high quality after-sale service when they using Anges products.

Company Information:

Shenzhen Anges Machinery Co., Ltd is located in the forefront of China's reform and opening up city-Shenzhen. Since it founded in 2004，it always adhere the idea of "Let's freeze the industry”, Anges has developed into the word's leading industrial refrigerate equipment supplier.

FAQ:

Q: What are air cooled chillers?

A: Air-cooled chillers actively absorb heat from process water; they then transfer this heat into the air around the chiller unit. ... The refrigerant condenses when it's in the condenser tubes, releasing its internal heat to the air or cooling water.

Q: What is the difference between air cooled and water cooled chillers?

A: The difference is in how the condenser water loop rejects heat into the atmosphere.Air cooled chiller uses a tube and fin type air heat exchanger to reject the condenser water heat directly into the atmosphere via sensible cooling.

Q: Do air cooled chillers need cooling towers?

A: Air-cooled chiller systems typically have a lower first and maintenance cost since they do not require a cooling tower, water pumps, and associated condenser water chemical treatment. Operating costs, however, generally favor water-cooled chillers.

Q: How often should chiller tubes be cleaned?

A: Most chiller manufacturers recommend cleaning condenser tubes. Annually, since they typically are part of an open system, and they recommend cleaning evaporatortubes once every three years for closed systems.
