item no.:
ACK-6lead time:
30 daysproduct orgin:
Chinashipping port:
shenzhenpayment:
FOB/CIF/CFRcolor:
yellow+grey
China Manufacturer Industrial Water Chiller ACK-6

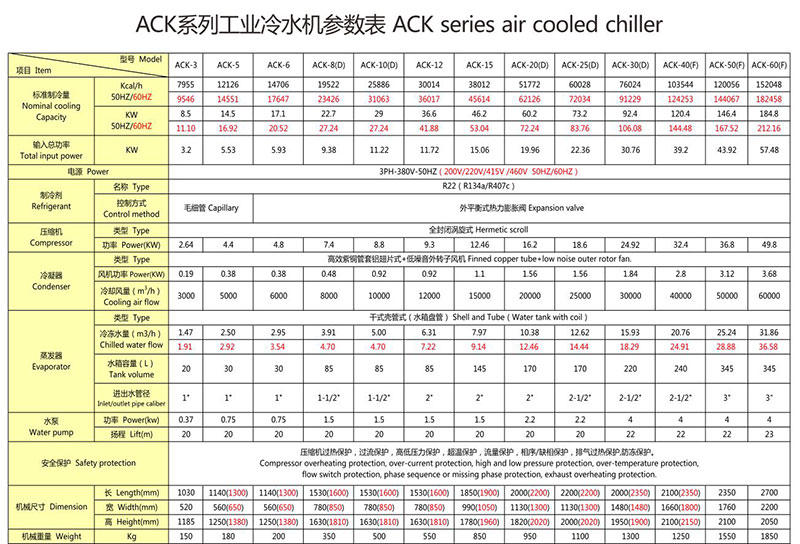

Specification
|
Model Item |
ACK-6 |
|
|
nominal cooling capacity |
kcal/h |
14706 |
|
kw |
17.1 |
|
|
input power |
kw |
5.93 |
|
power supply |
3PH 380V 50HZ |
|
|
refrigerant |
type |
R22(R134A/R407C/R410A) |
|
type of control |
expansion valve |
|
|
compressor |
type |
hermetic scroll type |
|
power(kw) |
4.8 |
|
|
condenser |
type |
finned copper tube+low noise outer fan |
|
power(kw) |
0.38 |
|
|
cooling air flow(m3/h) |
6000 |
|
|
evaporator |
type |
shell and tube+water tank |
|
chilled fluid flow(m3/h) |
2.95 |
|
|
volume(L) |
30 |
|
|
inlet and outlet pipe diameter(inch) |
1 |
|
|
pump |
power(kw) |
0.75 |
|
lift(m) |
20 |
|
|
safety protection |
compressor overheating protection, over-current protection, high and low pressure,over-temperature protection, flow switch, protection,phase sequence or missing phase protection, exhaust overheating protection |
|
|
weight |
kg |
200 |
|
dimension |
mm |
1140*560*1250 |
Note: 1.Nominal cooling capacity is according to:
Inlet chilled fluid temperature: 17℃
Outlet chilled fluid temperature: 12℃
Inlet cooling air temperature: 30℃
Outlet cooling air temperature: 35℃
2. Working Range:
The temperature range of chilled fluid is from 5℃ to 35℃;
Temperature difference between inlet and outlet chilled fluid is from 3℃ to 8℃.
It is better to run the chiller while the ambient temperature at or below 35℃.
We reserve the right to modify the above dimensions or parameters without further notice.
China Manufacturer Industrial Water Chiller ACK-6
Details
Industrial water chiller use the world famous Danfoss hermetic scroll type compressor, features low noise, low vibration, low energy consumption and high efficiency.
Simple structure, stable quality and high heat transfer performance.
The condenser of the air cooled chiller unit is made of aluminum fins and row column tubes to guarantee the high efficiency of heat exchanger.
Precise digital display temperature controller is provided to precisely control water temperature with variation of ±1℃.Temperature can be set in the range from 5℃ to 35℃.
Stainless steel water pump featuring wide working range, low noise, reliable performance.
Safety features, such as phase failure protection, flow switch protection, high and low pressure protection and over-heating protection. Higher reliability, low breakdown rate and perfect service system.
Redesign the route of the pipes and fix the pipes to prevent refrigerant leakage caused by vibration.
Environment-friendly refrigerant R407C, R410A, R134a, etc, which is no harm to the ozone layer.
All products of ACKSeries
Why choose us?
1.Anges has passed the ISO9001 international quality system certification, also many products have got the CE certification.
2.Anges currently has several independent research patents.
3.we also have many agents in Indonesia, Thailand,and other countries, to fully ensure that every user to enjoy a high quality after-sale service when they using Anges products.
Company Information:
Shenzhen Anges Machinery Co., Ltd is located in the forefront of China's reform and opening up city-Shenzhen. Since it founded in 2004，it always adhere the idea of "Let's freeze the industry”, Anges has developed into the word's leading industrial refrigerate equipment supplier.
FAQ:
Q:What is the advantage of scroll compressor?
The advantage of a scroll compressor is that it has fewer moving parts and less torque variation compared to the reciprocating compressor. This advantage is translated to a smooth and quiet operation. The scroll compressor is also known asscroll pump or scroll vacuum pump.
Q:What is the function of compressor in chiller?
The function of a compressor is to increase the pressure, and corresponding saturation temperature (boiling point) of the refrigerant vapor to high enough level so the refrigerant can condense by rejecting its heat through the condenser.
Q:What is chiller cycle?
A chiller is a machine that removes heat from a liquid via a vapor-compression or absorption refrigeration cycle. This liquid can then be circulated through a heat exchanger to cool equipment, or another process stream (such as air or process water).
Q:Which refrigerant is the most efficient?
The most common HFC used in air conditioners is R-410A. This refrigerant is better than R-22 in terms of “Ozone Depletion” potential and energy efficiency, but it still causes global warming. A few more HFCs that are commonly used are: R-32 in Air Conditioners and R-134A in refrigerators.
Air-cooled chiller systems typically have a lower first and maintenance cost since they do not require a cooling tower, water pumps, and associated condenser water chemical treatment. In addition, we can accept OEM.
