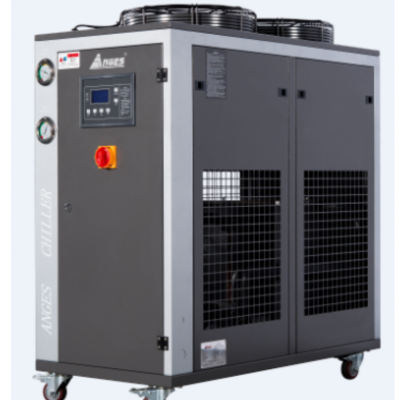

Professional Air Cooled Scroll Chiller ACK-8(D)

Professional  Air Cooled Scroll Chiller ACK-8(D)

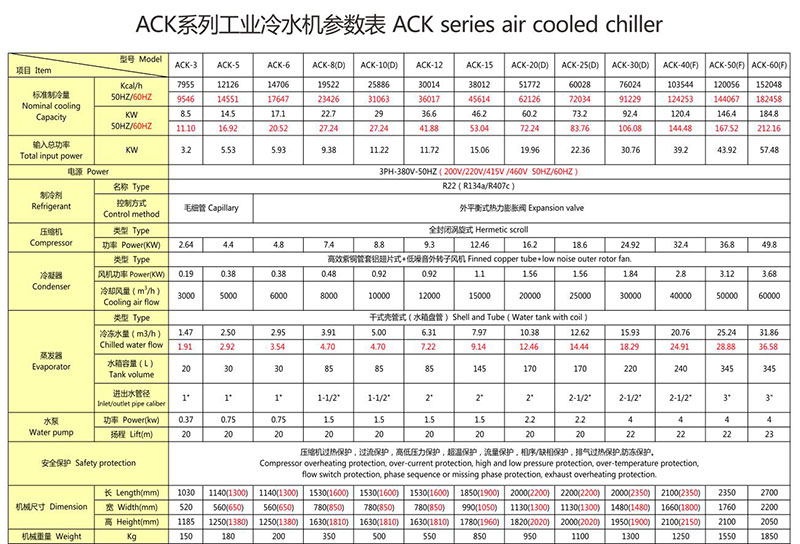

Specification

Note: 1.Nominal cooling capacity is according to:

      Inlet chilled fluid temperature: 17℃

      Outlet chilled fluid temperature: 12℃

      Inlet cooling air temperature: 30℃

      Outlet cooling air temperature: 35℃

    2. Working Range:

      The temperature range of chilled fluid is from 5℃ to 35℃;

      Temperature difference between inlet and outlet chilled fluid is from 3℃ to 8℃.

      It is better to run the chiller while the ambient temperature at or below 35℃.

     We reserve the right to modify the above dimensions or parameters without further notice.

Professional  Air Cooled Scroll Chiller ACK-8(D)

Details

Air cooled scroll chiller use the world famous Danfoss hermetic scroll type compressor, features low noise, low vibration, low energy consumption and high efficiency.

Simple structure, stable quality and high heat transfer performance.

The condenser of the air cooled chiller unit is made of aluminum fins and row column tubes to guarantee the high efficiency of heat exchanger.

Precise digital display temperature controller is provided to precisely control water temperature with variation of ±1℃.Temperature can be set in the range from 5℃ to 35℃.

Stainless steel water pump featuring wide working range, low noise, reliable performance.

Safety features, such as phase failure protection, flow switch protection, high and low pressure protection and over-heating protection. Higher reliability, low breakdown rate and perfect service system.

Redesign the route of the pipes and fix the pipes to prevent refrigerant leakage caused by vibration.

Environment-friendly refrigerant R407C, R410A, R134a, etc, which is no harm to the ozone layer.

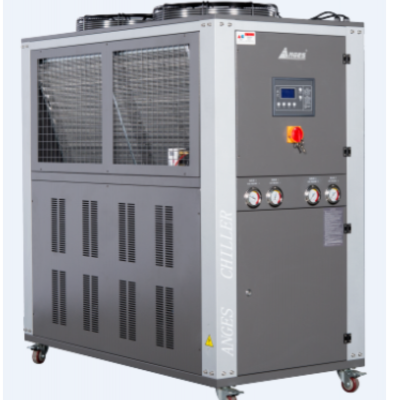

All products of ACK Series

Why choose us?

1.Anges has passed the ISO9001 international quality system certification,  also many products have got the CE certification.

2.Anges currently has several independent research patents.

3.We also have many agents in Indonesia, Thailand,and other countries, to fully ensure that every user to enjoy a high quality after-sale service when they using Anges products.

Company Information:

Shenzhen Anges Machinery Co., Ltd is located in the forefront of China's reform and opening up city-Shenzhen. Since it founded in 2004，it always adhere the idea of "Let's freeze the industry”, Anges has developed into the word's leading industrial refrigerate equipment supplier.

FAQ:

Q:What is scroll chiller?
If your business needs the use of water cooled scroll chillers to demand process cooling applications, Danfoss cool indeed is the name you can rely on. The scrollcompressor with the water cooled chiller offers optimum performance. It enables thechiller to work amazingly at the high ambient temperatures.

Q:What is the function of compressor in chiller?
The function of a compressor is to increase the pressure, and corresponding saturation temperature (boiling point) of the refrigerant vapor to high enough level so the refrigerant can condense by rejecting its heat through the condenser.

Q:What is shell and tube evaporator?
The main function of Shell & Tube Type Evaporator is to act as a heat exchanger in a vessel form. This is mainly done to cool closed circuit for re-circulating fluid flow. This can be done with the help of refrigerants as a cooling medium. They are efficient in working and having compact design.

Q:Which refrigerant is the most efficient?
The most common HFC used in air conditioners is R-410A. This refrigerant is better than R-22 in terms of “Ozone Depletion” potential and energy efficiency, but it still causes global warming. A few more HFCs that are commonly used are: R-32 in Air Conditioners and R-134A in refrigerators.
