Industrial Air Cooled Chiller China ACK-50(F)

 Industrial Air Cooled Chiller China ACK-50(F)

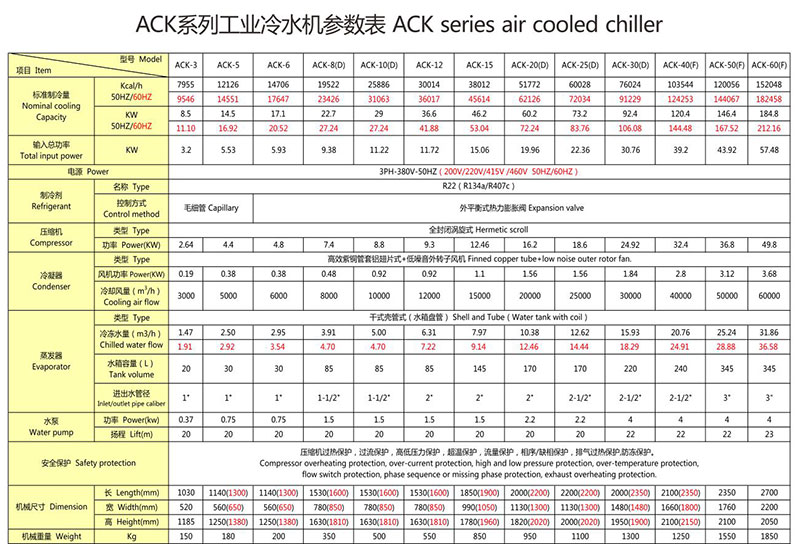

Specification

Note: 1.Nominal cooling capacity is according to:

      Inlet chilled fluid temperature: 17℃

      Outlet chilled fluid temperature: 12℃

      Inlet cooling air temperature: 30℃

      Outlet cooling air temperature: 35℃

    2. Working Range:

      The temperature range of chilled fluid is from 5℃ to 35℃;

      Temperature difference between inlet and outlet chilled fluid is from 3℃ to 8℃.

      It is better to run the chiller while the ambient temperature at or below 35℃.

     We reserve the right to modify the above dimensions or parameters without further notice.

 Industrial Air Cooled Chiller China ACK-50(F)

Details

Industrial air cooled chiller use the world famous Danfoss hermetic scroll type compressor, features low noise, low vibration, low energy consumption and high efficiency.

Simple structure, stable quality and high heat transfer performance.

The condenser of the air cooled chiller unit is made of aluminum fins and row column tubes to guarantee the high efficiency of heat exchanger.

Precise digital display temperature controller is provided to precisely control water temperature with variation of ±1℃.Temperature can be set in the range from 5℃ to 35℃.

Stainless steel water pump featuring wide working range, low noise, reliable performance.

Safety features, such as phase failure protection, flow switch protection, high and low pressure protection and over-heating protection. Higher reliability, low breakdown rate and perfect service system.

Redesign the route of the pipes and fix the pipes to prevent refrigerant leakage caused by vibration.

Environment-friendly refrigerant R407C, R410A, R134a, etc, which is no harm to the ozone layer.

All products of ACK Series

Why choose us?

1. Anges has passed the ISO9001 international quality system certification,  also many products have got the CE certification.

2. Anges currently has several independent research patents.

3. We also have many agents in Indonesia, Thailand,and other countries, to fully ensure that every user to enjoy a high quality after-sale service when they using Anges products.

Company Information:

Shenzhen Anges Machinery Co., Ltd is located in the forefront of China's reform and opening up city-Shenzhen. Since it founded in 2004，it always adhere the idea of "Let's freeze the industry”, Anges has developed into the word's leading industrial refrigerate equipment supplier.

Package and Delivery

1. Standard Export Wooden Case;

2. We can make trade terms of FOB、CIF、DAP、DDU and DDP with clients;

3. Usually, it is ok to be deliveried about 35 days for standard chiller;

FAQ:

Q:What are air cooled chillers used for?
Air-cooled chillers are refrigeration systems used in both commercial and industrial facilities to cool fluids and/or dehumidify air. They are used in a wide variety of settings including hotels, corporate events, restaurants, sporting events, large-scale construction, industrial and manufacturing plants, and so forth.

Q:What is a air cooled chiller?
Air cooled chillers absorb heat from process water, and the heat is then transferred to the air around the chiller unit. This type of chiller system is generally used in app.

Q:How does an industrial chiller work?
The process water is the means by which heat transfers from the process to the chiller.  This process of heating and cooling the refrigerant and changing it from a gas to a liquid and back again is the refrigeration cycle. The refrigeration cycle starts with a low-pressure liquid/gas mix entering the evaporator.

Q:How do you maintain a chiller system?
1.Keep a daily log.
2.Keep tubes clean for efficient heat transfer.
3.Treat condenser water to prevent scale, corrosion.
4.Lower entering water temperature.
5.Keep chilled water flow rate between 3 to 12-ft per second.
6.Maintain adequate refrigerant charge.
7.Prevent inefficiencies caused by non-condensables.
