Air Cooled Water Chiller ACK-40(F)

Air Cooled Water Chiller China Manufacturers  ACK-40(F)

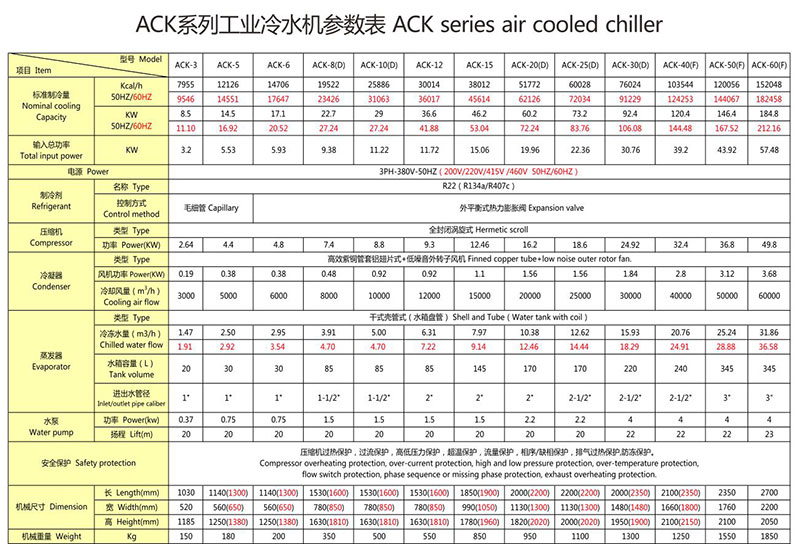

Specification

Note: 1.Nominal cooling capacity is according to:

      Inlet chilled fluid temperature: 17℃

      Outlet chilled fluid temperature: 12℃

      Inlet cooling air temperature: 30℃

      Outlet cooling air temperature: 35℃

    2. Working Range:

      The temperature range of chilled fluid is from 5℃ to 35℃;

      Temperature difference between inlet and outlet chilled fluid is from 3℃ to 8℃.

      It is better to run the chiller while the ambient temperature at or below 35℃.

     We reserve the right to modify the above dimensions or parameters without further notice.

Air Cooled Water Chiller China Manufacturers  ACK-40(F)

Details

Air cooled water chiller use the world famous Danfoss hermetic scroll type compressor, features low noise, low vibration, low energy consumption and high efficiency.

Simple structure, stable quality and high heat transfer performance.

The condenser of the air cooled chiller unit is made of aluminum fins and row column tubes to guarantee the high efficiency of heat exchanger.

Precise digital display temperature controller is provided to precisely control water temperature with variation of ±1℃.Temperature can be set in the range from 5℃ to 35℃.

Stainless steel water pump featuring wide working range, low noise, reliable performance.

Safety features, such as phase failure protection, flow switch protection, high and low pressure protection and over-heating protection. Higher reliability, low breakdown rate and perfect service system.

Redesign the route of the pipes and fix the pipes to prevent refrigerant leakage caused by vibration.

Environment-friendly refrigerant R407C, R410A, R134a, etc, which is no harm to the ozone layer.

All products of ACK Series

Why choose us?

1. Anges has passed the ISO9001 international quality system certification,  also many products have got the CE certification.

2. Anges currently has several independent research patents.

3. We also have many agents in Indonesia, Thailand,and other countries, to fully ensure that every user to enjoy a high quality after-sale service when they using Anges products.

Company Information:

Shenzhen Anges Machinery Co., Ltd is located in the forefront of China's reform and opening up city-Shenzhen. Since it founded in 2004，it always adhere the idea of "Let's freeze the industry”, Anges has developed into the word's leading industrial refrigerate equipment supplier.

Package and Delivery

1. Standard Export Wooden Case;

2. We can make trade terms of FOB、CIF、DAP、DDU and DDP with clients;

3. Usually, it is ok to be deliveried about 35 days for standard chiller;

FAQ:

Q:What is the difference between air cooled and water cooled chillers?
Air-cooled chiller and water-cooled chiller, the biggest difference between the two is the cooling mode is different（cooling system of the chiller itself.In the structure, their condenser is also different, respectively for shell and tube type and fin type.The water-cooled chiller must rely on the cooling tower, while the air-cooled chiller uses its own fan for cooling.
Air-cooled chiller has higher requirements for the environment,for example, ventilation, humidity, temperature should not be higher than 45°C, air acid and base value, etc.

Q:What is an industrial chiller?
Industrial chillers are classified as a refrigeration system that cools a process fluid . A chiller will use either a vapor compression or absorption cycle to cool. Chilled water has a variety of applications from space cooling to process uses.

Q:What is the difference between chiller and refrigerator?
Chillers cools liquids only and in the temperature range of 5 to 35 degree celcius. Freezer cools anything that is kept within an enclosed area upto -20 to -35 degree celcius. Refrigerator extracts heat from the same as freezer but the range is only upto 3 to 5 degree celcius.

Q:What is the safety of chiller?
Every chiller usually has safety controls that are designed to protect the cooling system from harm because of low refrigerant temperature, low oil pressure, or high condensing pressure.
