Scroll Type Compressor Air Cooled Chiller Unit ACK-30(D)

Scroll Type Compressor Air Cooled Chiller Unit ACK-30(D)

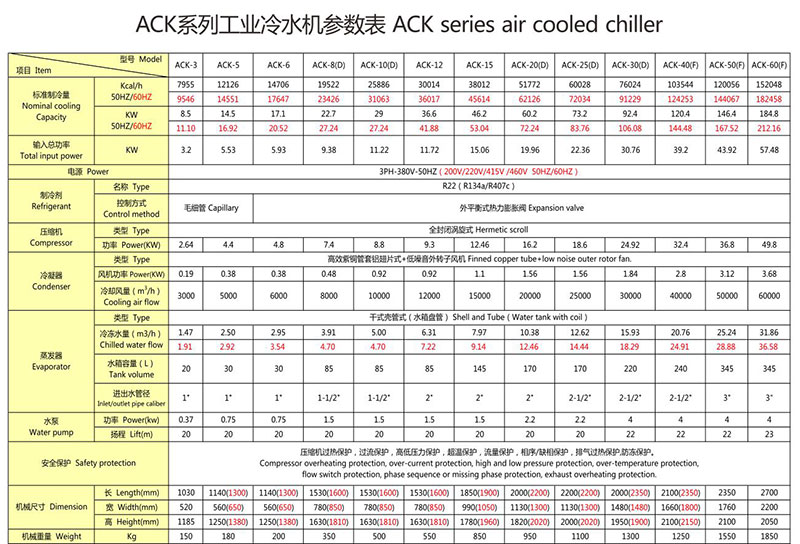

Specification

Note: 1.Nominal cooling capacity is according to:

      Inlet chilled fluid temperature: 17℃

      Outlet chilled fluid temperature: 12℃

      Inlet cooling air temperature: 30℃

      Outlet cooling air temperature: 35℃

    2. Working Range:

      The temperature range of chilled fluid is from 5℃ to 35℃;

      Temperature difference between inlet and outlet chilled fluid is from 3℃ to 8℃.

      It is better to run the chiller while the ambient temperature at or below 35℃.

     We reserve the right to modify the above dimensions or parameters without further notice.

Scroll Type Compressor Air Cooled Chiller Unit ACK-30(D)

Details

Using the world famous Danfoss hermetic scroll type compressor, features low noise, low vibration, low energy consumption and high efficiency.

Simple structure, stable quality and high heat transfer performance.

The condenser of the air cooled chiller unit is made of aluminum fins and row column tubes to guarantee the high efficiency of heat exchanger.

Precise digital display temperature controller is provided to precisely control water temperature with variation of ±1℃.Temperature can be set in the range from 5℃ to 35℃.

Stainless steel water pump featuring wide working range, low noise, reliable performance.

Safety features, such as phase failure protection, flow switch protection, high and low pressure protection and over-heating protection. Higher reliability, low breakdown rate and perfect service system.

Redesign the route of the pipes and fix the pipes to prevent refrigerant leakage caused by vibration.

Environment-friendly refrigerant R407C, R410A, R134a, etc, which is no harm to the ozone layer.

All products of ACK Series

Why choose us?

1. Anges has passed the ISO9001 international quality system certification,  also many products have got the CE certification.

2. Anges currently has several independent research patents.

3. We also have many agents in Indonesia, Thailand,and other countries, to fully ensure that every user to enjoy a high quality after-sale service when they using Anges products.

Company Information:

Shenzhen Anges Machinery Co., Ltd is located in the forefront of China's reform and opening up city-Shenzhen. Since it founded in 2004，it always adhere the idea of "Let's freeze the industry”, Anges has developed into the word's leading industrial refrigerate equipment supplier.

Package and Delivery

1. Standard Export Wooden Case;

2. We can make trade terms of FOB、CIF、DAP、DDU and DDP with clients;

3. Usually, it is ok to be deliveried about 35 days for standard chiller;

FAQ:

Q:Which refrigerant is used in chiller?
Currently used refrigerants in Vapor compression units: R410A, R407C, R134a, R404a. R22 is being phased out.

Q:Do chillers use refrigerant?
Process chillers contain a chemical compound, called a refrigerant. ... An air-cooled condenser uses ambient air to cool and condense the hot refrigerant gas back down to a liquid. It can be located inside the chiller or can be remotely located outside, but ultimately it rejects the heat from the chiller to the air.

Q:What is a water chiller used for?
A water chiller is a mechanical device used to facilitate heat exchange from water to a refrigerant in a closed loop system.

Q:What is the function of condenser in chiller?
Water-cooled condensers and chiller barrels are specialized heat exchangers. They exchange heat by removing heat from one fluid and transferring it to another fluid. A water-cooled condenser is a heat exchanger that removes heat from refrigerant vapor and transfers it to the water running through it.
