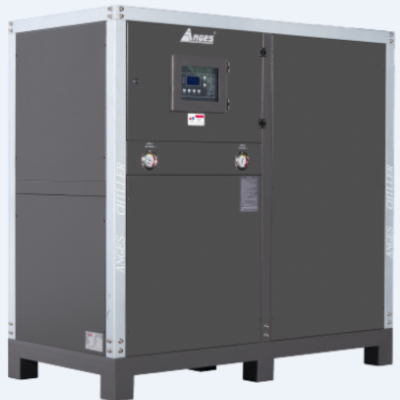

25 Ton Water Cooled Reciprocating Chiller AWK-25(D)

 25Ton Water Cooled Reciprocating Chiller  AWK-25(D)

Specification

Model Item	AWK-25(D)
nominal cooling capacity	kcal/h	69316
	kw	80.6
input power	kw	17.8
power supply	3PH  380V  50HZ
refrigerant	type	R22/R407C/R410A/R134A
	type of control	expansion valve
compressor	type	hermetic scroll type
	power(kw)	15.6
condenser	type	shell and tube
	cooling water flow(m3/h)	16.7
	inlet/outlet pipe caliber（inch）	2
evaporator	type	shell and tube+water tank
	chilled fluid flow(m3/h)	13.9
	volume(L)	175
	inlet and outlet pipe diameter(inch)	2
pump	power(kw)	2.2
	lift(m)	20
safety protection	compressor overheating protection, over-current protection, high and low pressure,over-temperature protection, flow switch, protection,phase sequence or missing phase protection, exhaust overheating protection
weight	kg	1100
dimension	mm	1850*810*1620

Note: 1.Nominal cooling capacity is according to:

   Inlet chilled fluid temperature: 17℃ Outlet chilled fluid temperature: 12℃

   Inlet cooling water temperature: 30℃ Outlet cooling water temperature: 35℃

     2. Working Range:

   The temperature range of chilled fluid is from 5℃ to 35℃;

   Temperature difference between inlet and outlet chilled fluid is from 3℃ to 8℃.

   The temperature range of cooling water is from 18℃ to 37℃;

 Temperature difference between inlet and outlet cooling water is from 3.5℃ to 10℃.

We reserve the right to modify the above dimensions or parameters without further notice.

25 Ton Water Cooled Reciprocating Chiller  AWK-25(D)

Details

Using the world famous Danfoss hermetic scroll type compressor, features low noise, low vibration, low energy consumption and high efficiency.

Simple structure, stable quality and high heat transfer performance.

Precise digital display temperature controller is provided to precisely control water temperature with variation of ±1℃.Temperature can be set in the range from 5℃ to 35℃.

Safety features, such as phase failure protection, flow switch protection, high and low pressure protection and over-heating protection. Higher reliability, low breakdown rate and perfect service system.

Redesign the route of the pipes and fix the pipes to prevent refrigerant leakage caused by vibration.

Environment-friendly refrigerant R407C, R410A, R134a, etc, which is no harm to the ozone layer.

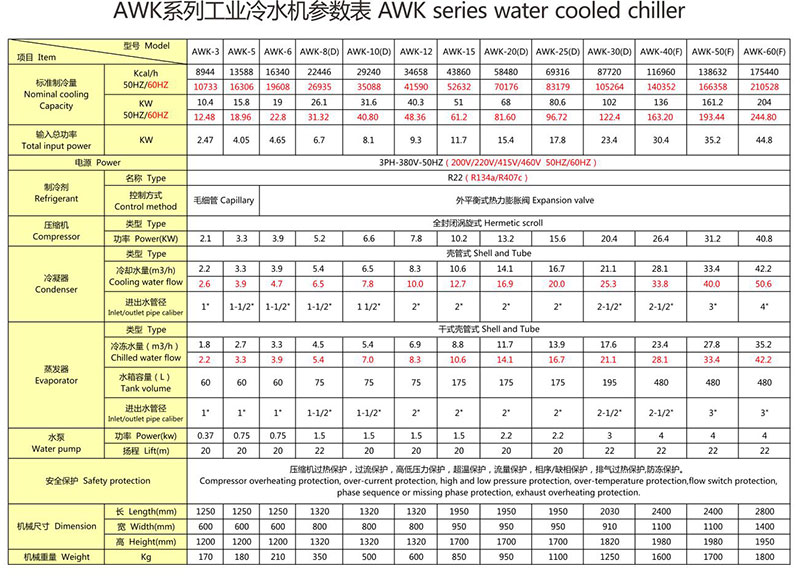

All products of AWK Series

Why choose us?

1.Anges has passed the ISO9001 international quality system certification,  also many products have got the CE certification.

2.Anges currently has several independent research patents.

3.We also have many agents in Indonesia, Thailand,and other countries, to fully ensure that every user to enjoy a high quality after-sale service when they using Anges products.

Company Information:

Shenzhen Anges Machinery Co., Ltd is located in the forefront of China's reform and opening up city-Shenzhen. Since it founded in 2004，it always adhere the idea of "Let's freeze the industry”, Anges has developed into the word's leading industrial refrigerate equipment supplier.

FAQ:

Q:Why are water cooled chillers more efficient than air cooled chillers?
Water-cooled chillers are more efficient because its condense depending on the ambient temperature bulb temperature, which is lower than the ambient dry bulb temperature. The lower a chiller condenses, the more efficient it is.

Q:What are the types of compressors?
There are basically 5 types of air conditioner compressor that are commonly used in the chiller industry:

 Reciprocating.Scroll.Screw.Rotary.Centrifugal.

Q:How does it work plate heat exchanger?
Plate Heat Exchanger Working Principle. A plate exchanger consists of a series of parallel plates that are placed one above the other so as to allow the formation of a series of channels for fluids to flow between them. The space between two adjacent plates forms the channel in which the fluid flows.

Q:What are the advantages of plate heat exchanger?
Advantages of plate type heat exchanger is a Simple and Compact in size. Turbulent flow help to reduce deposits which heat transfer, No extra space is required for dismantling in Plate heat exchangers. Plate type heat exchanger is Maintenance simple and can be easily cleaned.
