Liquid Cooling Industrial Water Chiller AWK-30(D)

Liquid Cooling Industrial Water Chiller AWK-30(D)

Specification

Model Item	AWK-30(D)
nominal cooling capacity	kcal/h	87720
	kw	102
input power	kw	23.4
power supply	3PH  380V  50HZ
refrigerant	type	R22/R407C/R410A/R134A
	type of control	expansion valve
compressor	type	hermetic scroll type
	power(kw)	20.4
condenser	type	shell and tube
	cooling water flow(m3/h)	21.1
	inlet/outlet pipe caliber（inch）	2-1/2
evaporator	type	shell and tube+water tank
	chilled fluid flow(m3/h)	17.6
	volume(L)	195
	inlet and outlet pipe diameter(inch)	2-1/2
pump	power(kw)	3
	lift(m)	22
safety protection	compressor overheating protection, over-current protection, high and low pressure,over-temperature protection, flow switch, protection,phase sequence or missing phase protection, exhaust overheating protection
weight	kg	1250
dimension	mm	2350*910*1820

Note: 1.Nominal cooling capacity is according to:

   Inlet chilled fluid temperature: 17℃ Outlet chilled fluid temperature: 12℃

   Inlet cooling water temperature: 30℃ Outlet cooling water temperature: 35℃

     2. Working Range:

   The temperature range of chilled fluid is from 5℃ to 35℃;

   Temperature difference between inlet and outlet chilled fluid is from 3℃ to 8℃.

   The temperature range of cooling water is from 18℃ to 37℃;

 Temperature difference between inlet and outlet cooling water is from 3.5℃ to 10℃.

We reserve the right to modify the above dimensions or parameters without further notice.

Liquid Cooling Industrial Water Chiller AWK-30(D)

Details

Liquid cooling industrial water chiller use the world famous Danfoss hermetic scroll type compressor, features low noise, low vibration, low energy consumption and high efficiency.

Simple structure, stable quality and high heat transfer performance.

Precise digital display temperature controller is provided to precisely control water temperature with variation of ±1℃.Temperature can be set in the range from 5℃ to 35℃.

Safety features, such as phase failure protection, flow switch protection, high and low pressure protection and over-heating protection. Higher reliability, low breakdown rate and perfect service system.

Redesign the route of the pipes and fix the pipes to prevent refrigerant leakage caused by vibration.

Environment-friendly refrigerant R407C, R410A, R134a, etc, which is no harm to the ozone layer.

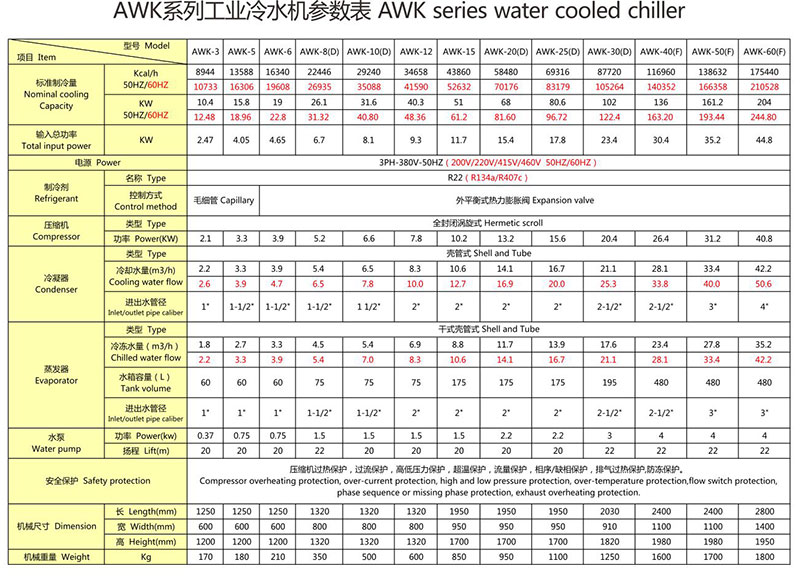

All products of AWK Series

Why choose us?

1.Anges has passed the ISO9001 international quality system certification,  also many water chiller products have got the CE certification.

2.Anges currently has several independent research patents.

3.We also have many agents in Indonesia, Thailand,and other countries, to fully ensure that every user to enjoy a high quality after-sale service when they using Anges products.

Company Information:

Shenzhen Anges Machinery Co., Ltd is located in the forefront of China's reform and opening up city-Shenzhen. Since it founded in 2004，it always adhere the idea of "Let's freeze the industry”, Anges has developed into the word's leading industrial refrigerate equipment supplier.

FAQ:

Q:How many types of chillers are there?
There are two different types of chillers,air-cooled and water-cooled.

Q:What is helical coil heat exchanger?
Helical coil heat exchangers are widely used in various processes due to the advantages compared to other (tubular) types of heat exchanger, such as easy integration to the system, relatively simple design and manufacturing, operation at high pressure, suitable under conditions of laminar flow or low flow rates at .

Q:How does it work plate heat exchanger?
Plate Heat Exchanger Working Principle. A plate exchanger consists of a series of parallel plates that are placed one above the other so as to allow the formation of a series of channels for fluids to flow between them. The space between two adjacentplates forms the channel in which the fluid flows.

Q:What are the advantages of plate heat exchanger?
Advantages of plate type heat exchanger is a Simple and Compact in size. Turbulent flow help to reduce deposits which heat transfer, No extra space is required for dismantling in Plate heat exchangers. Plate type heat exchanger is Maintenance simple and can be easily cleaned.
